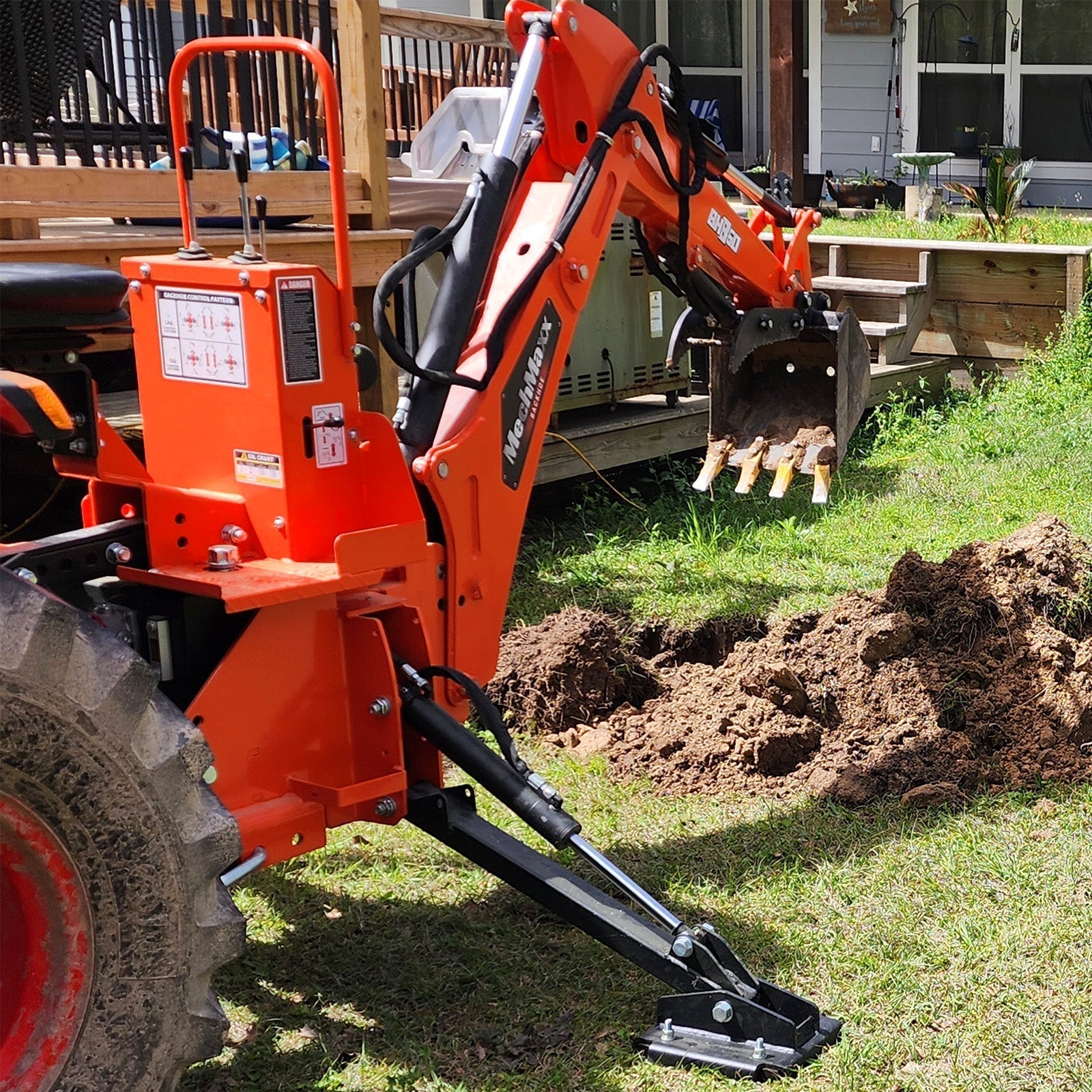

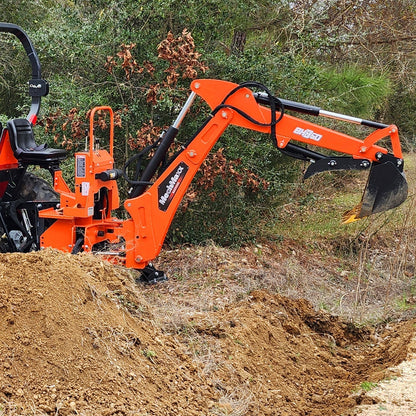

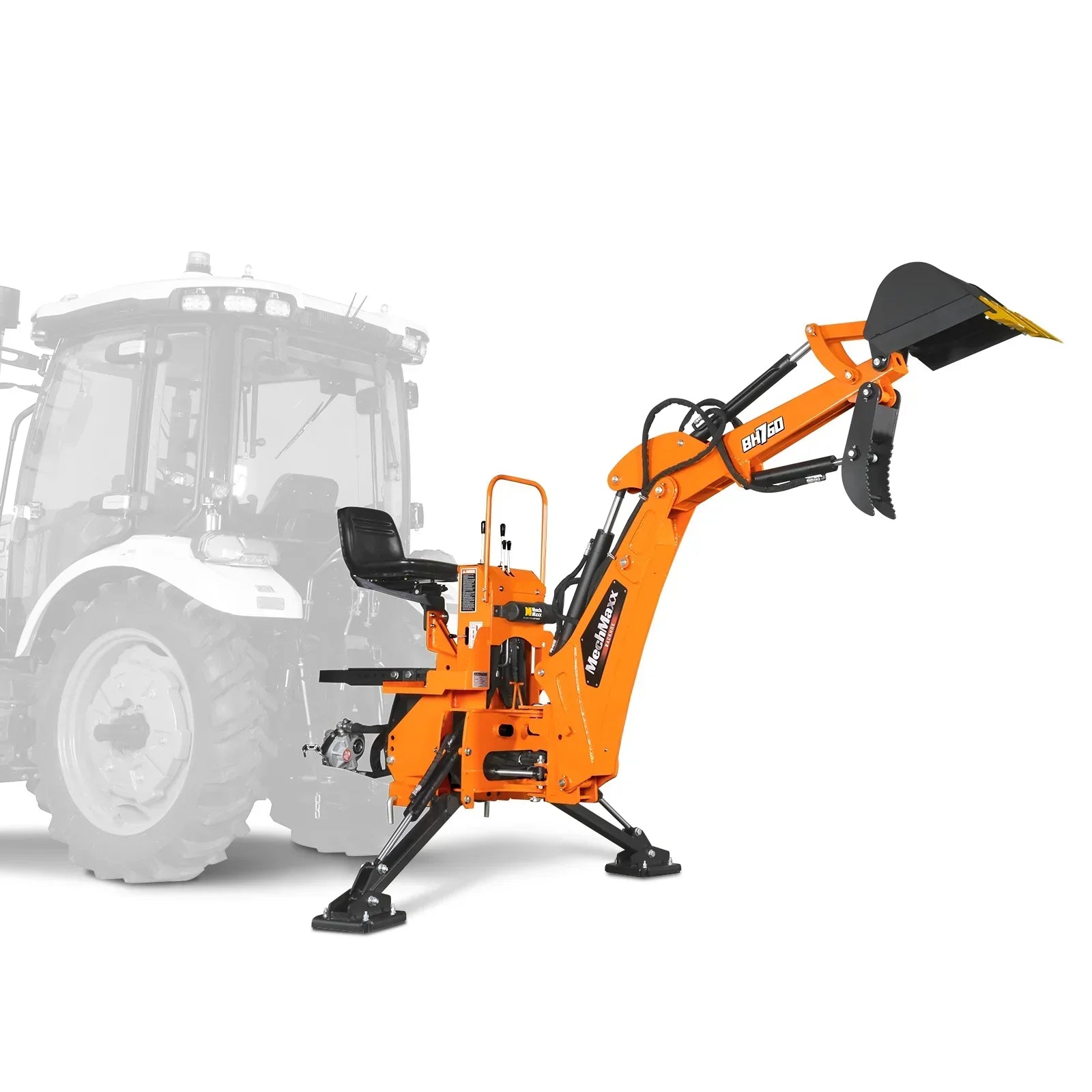

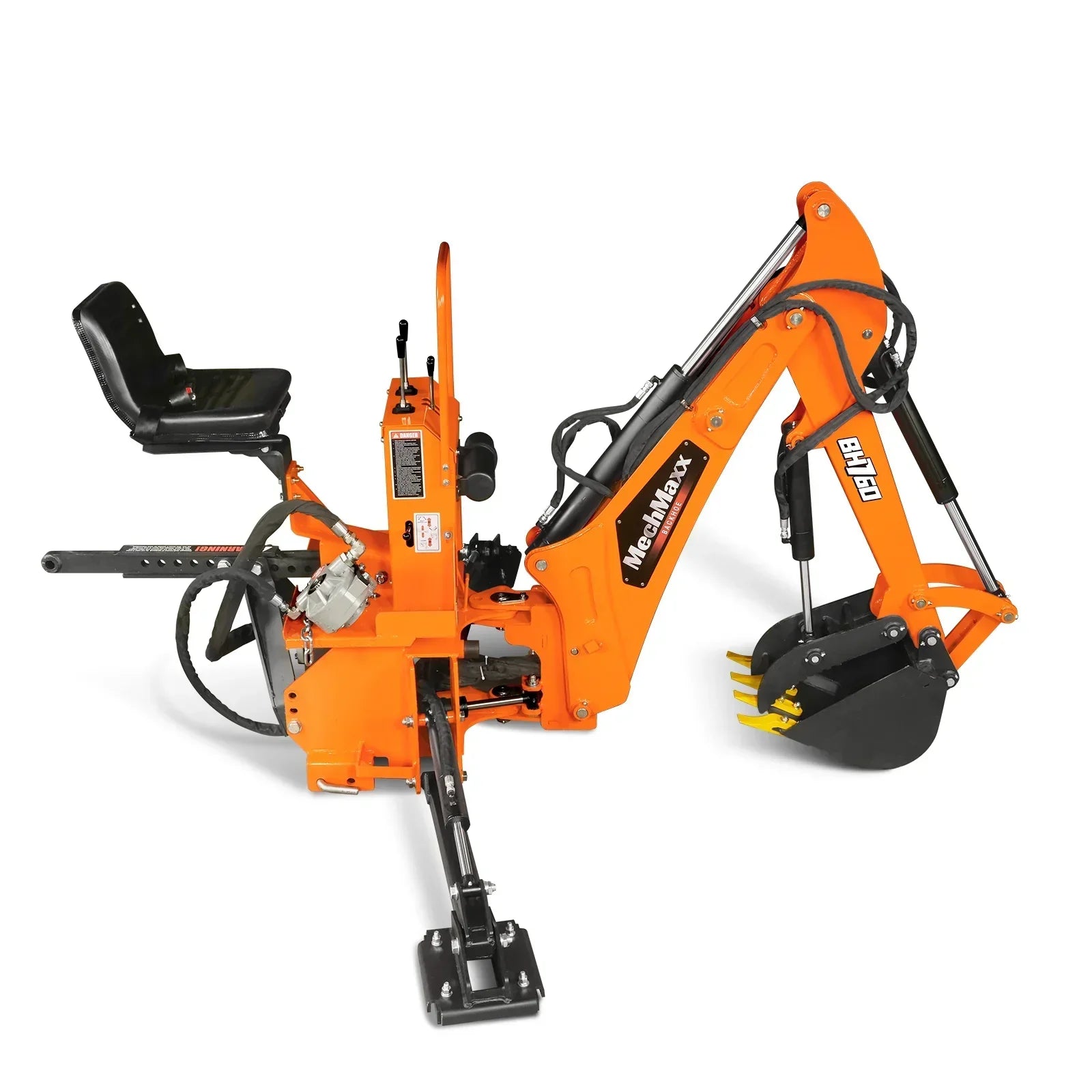

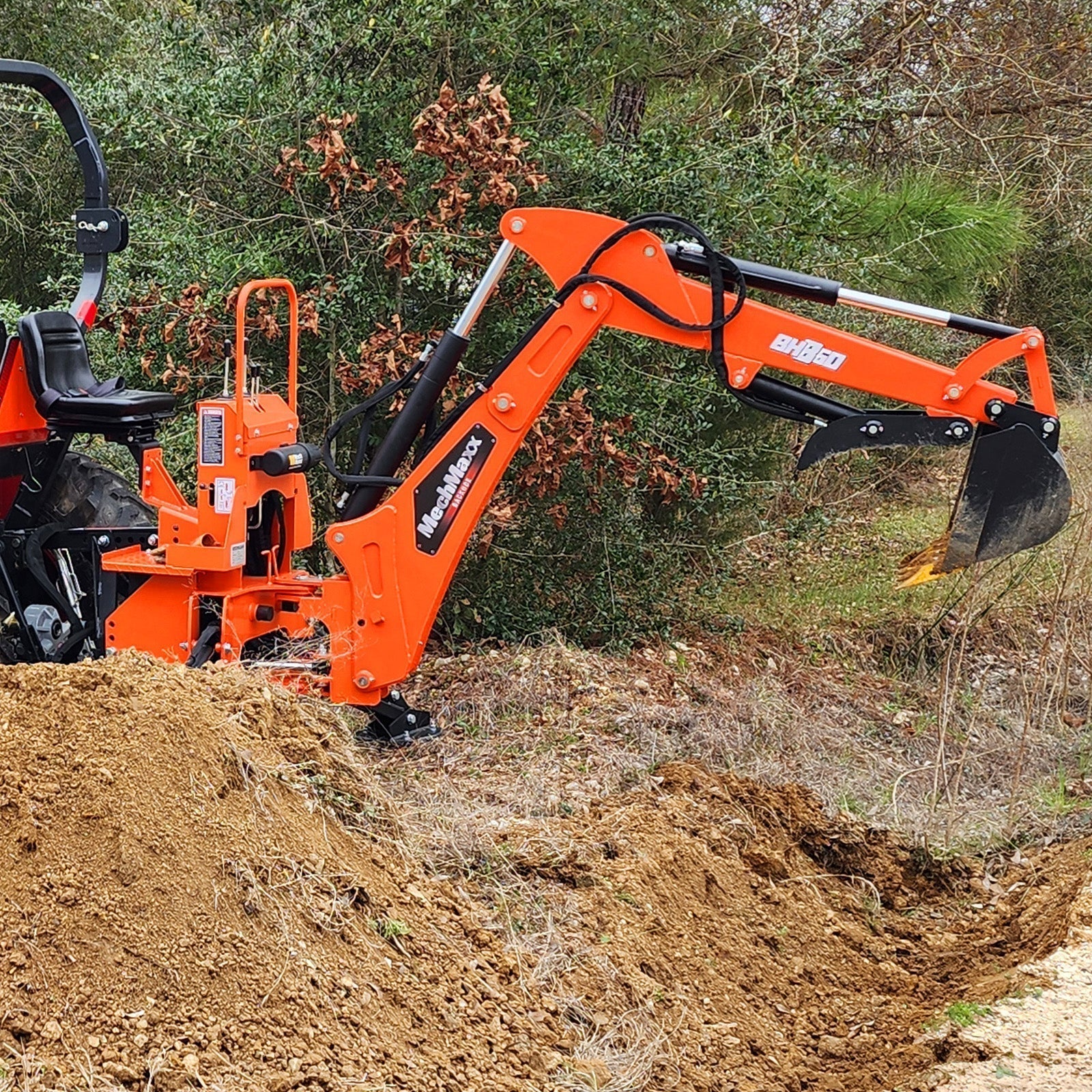

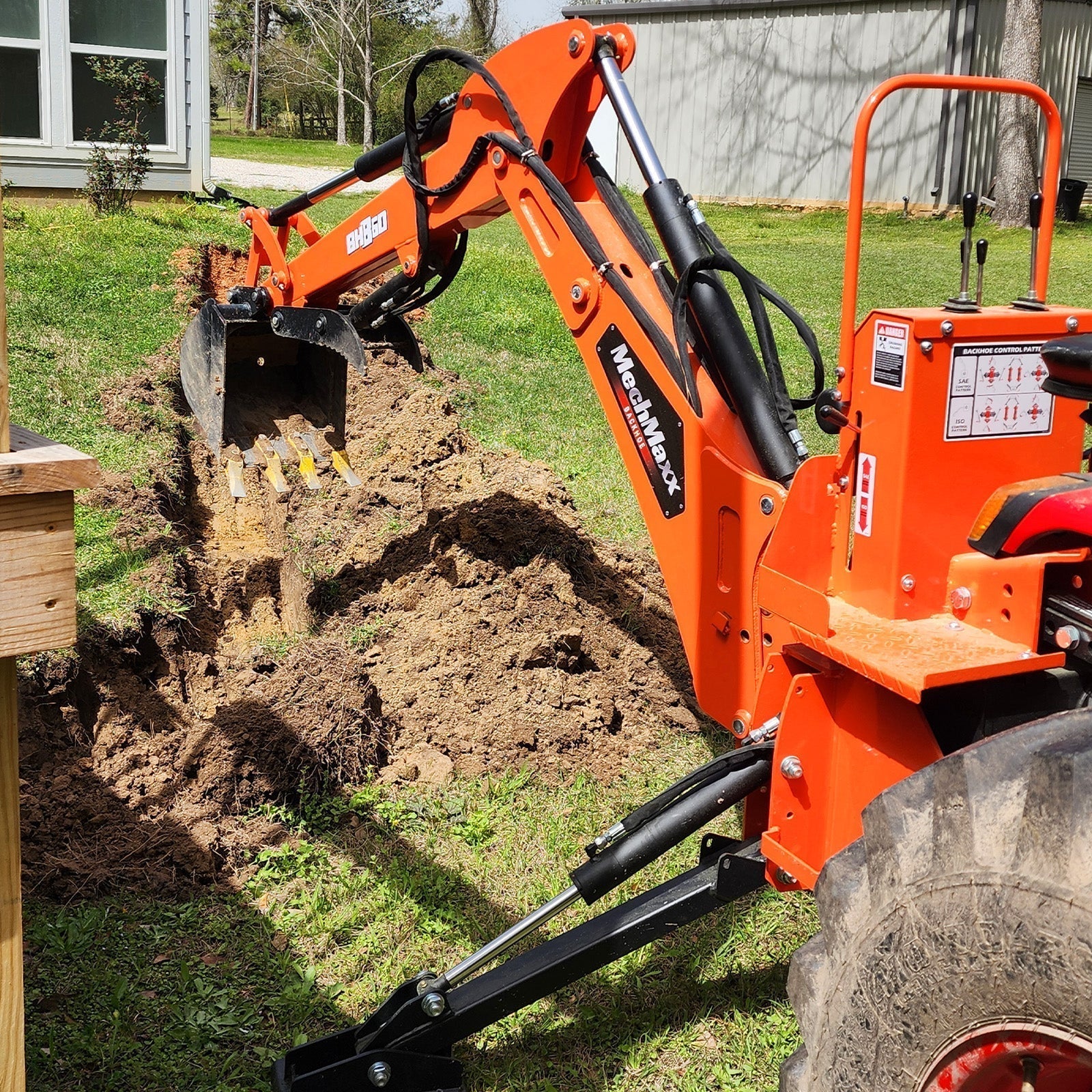

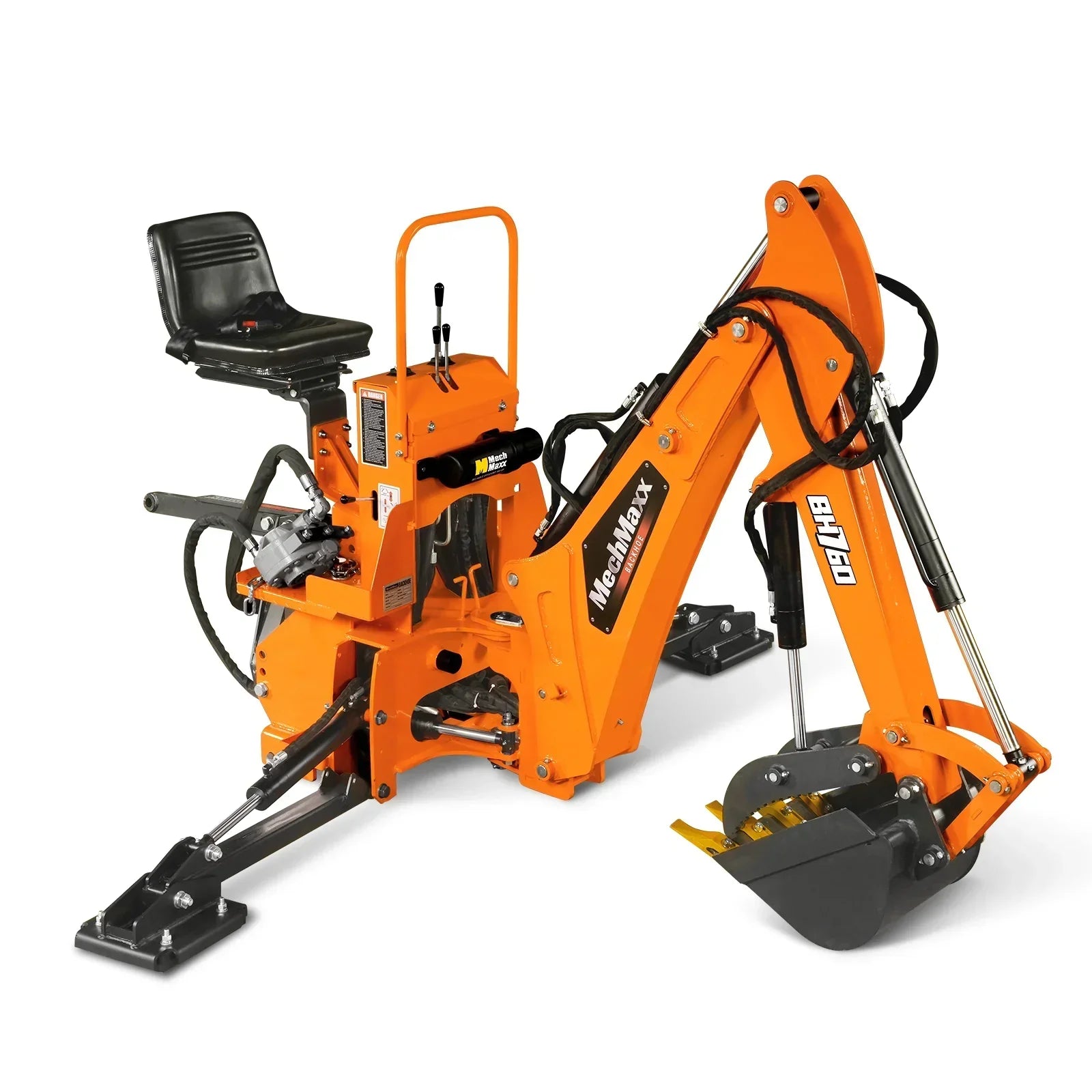

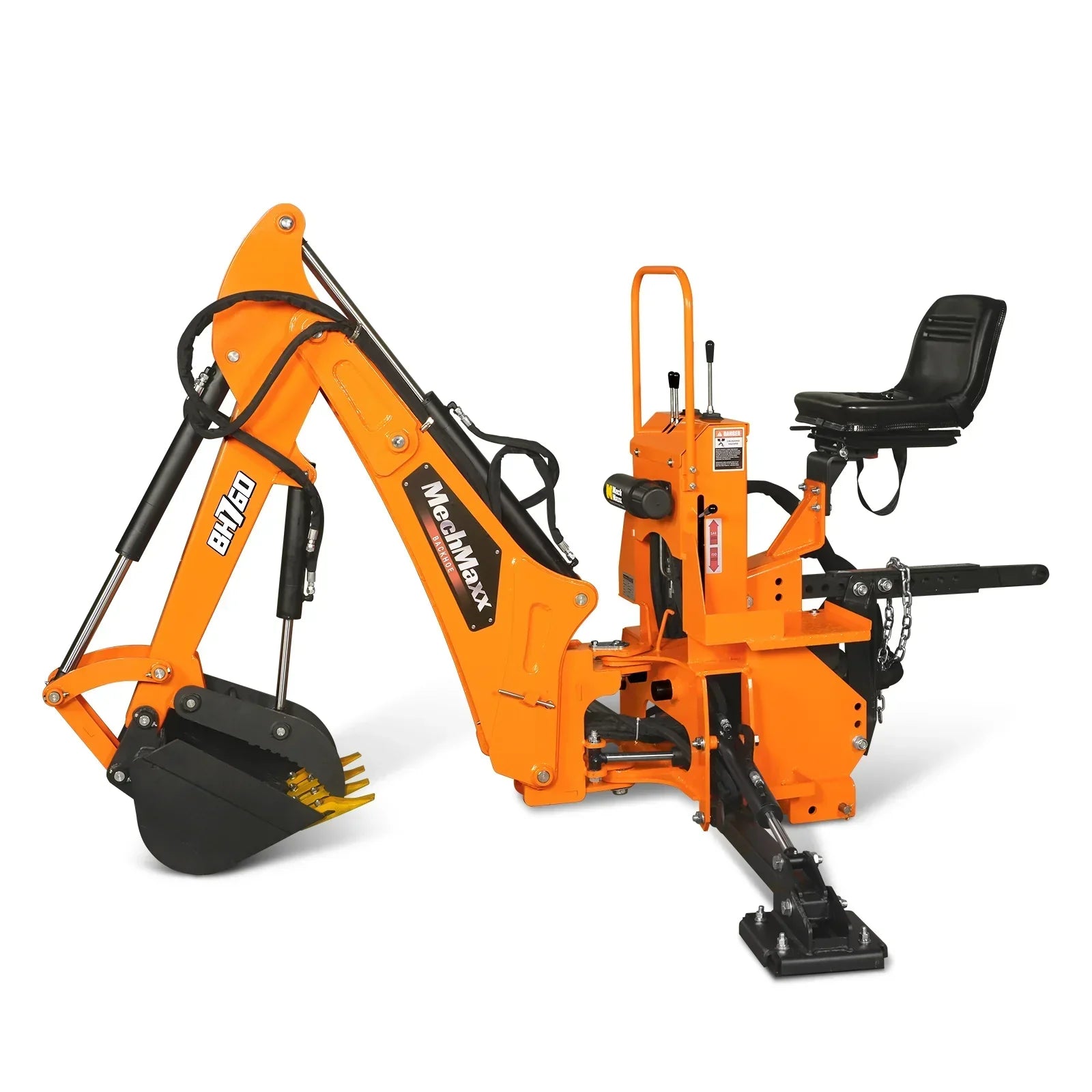

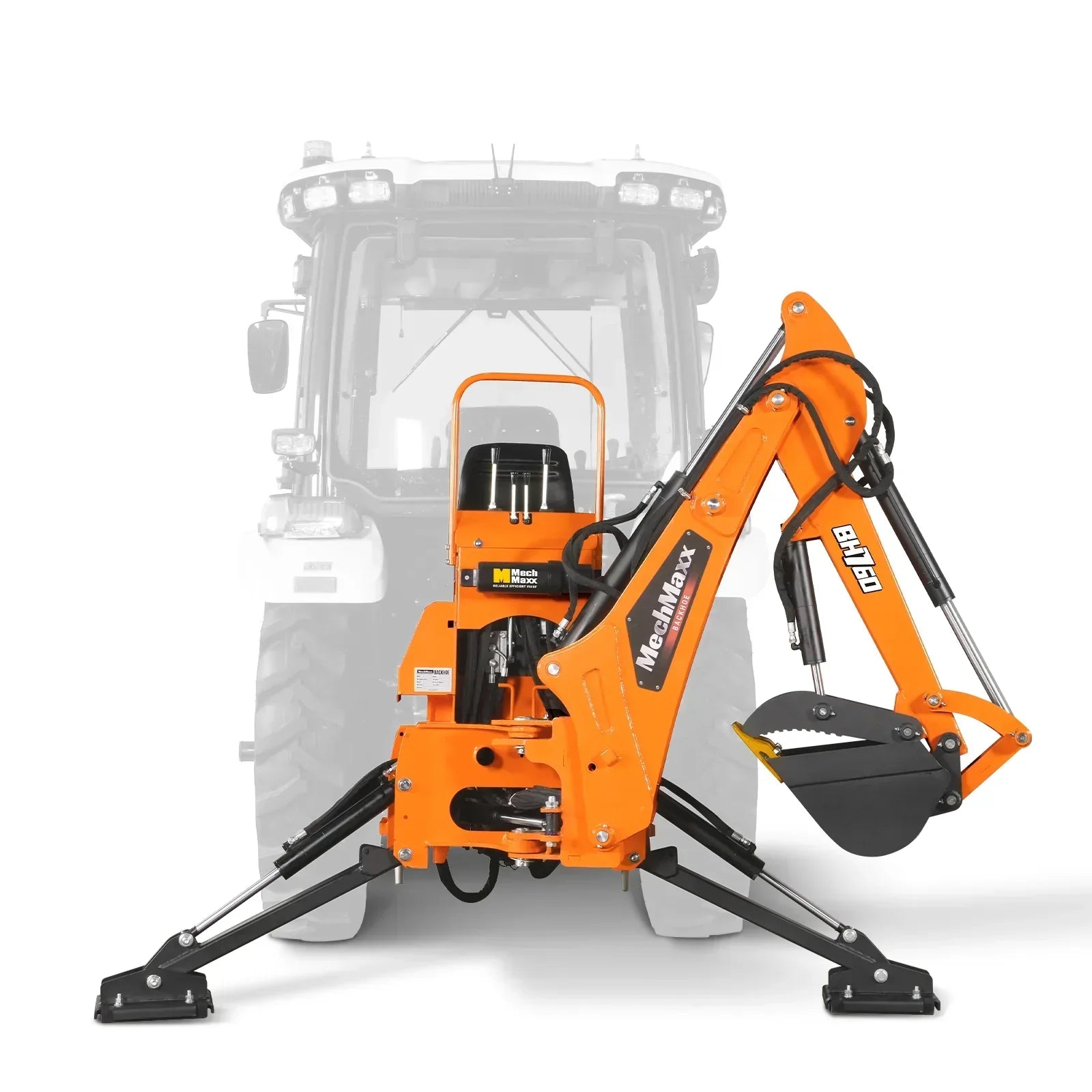

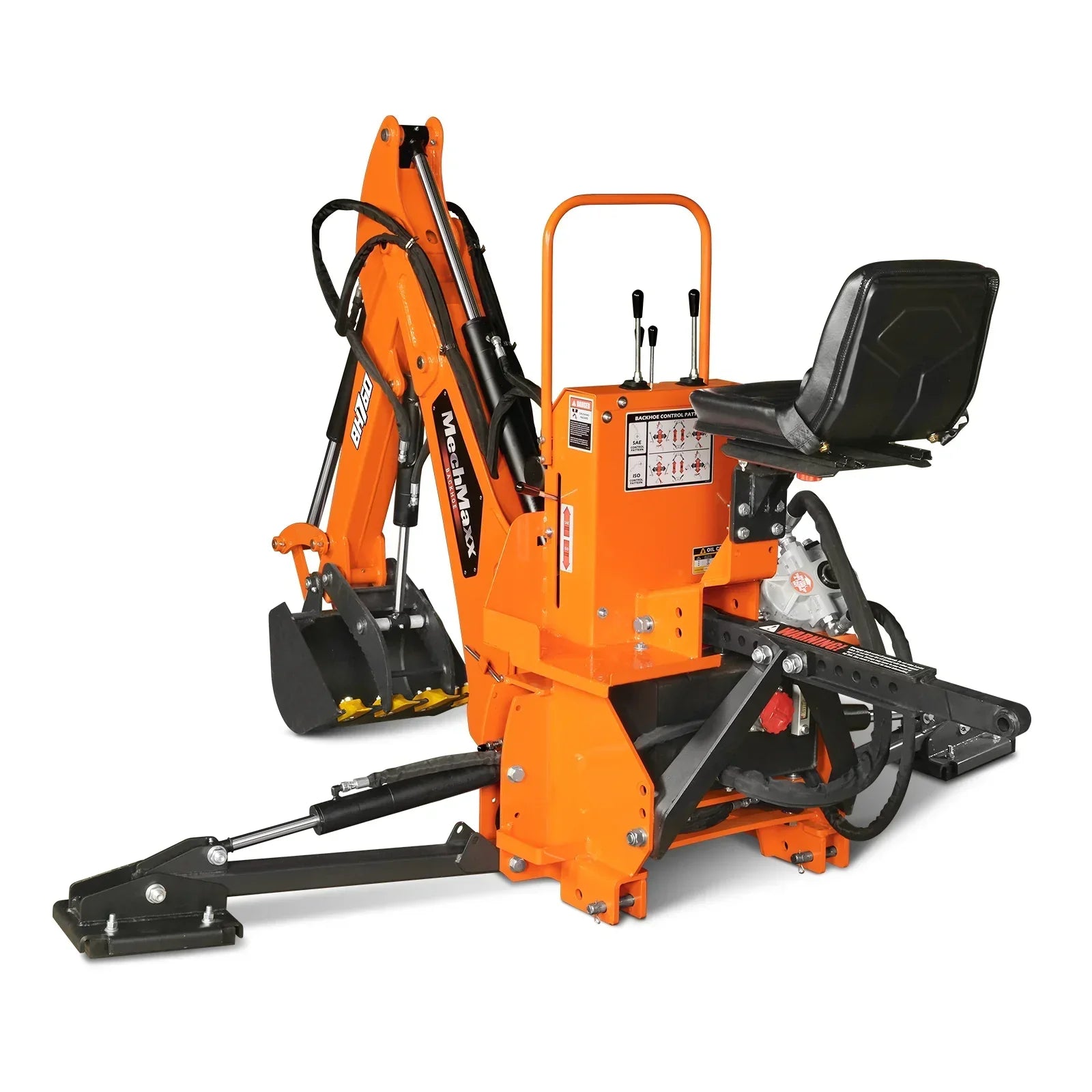

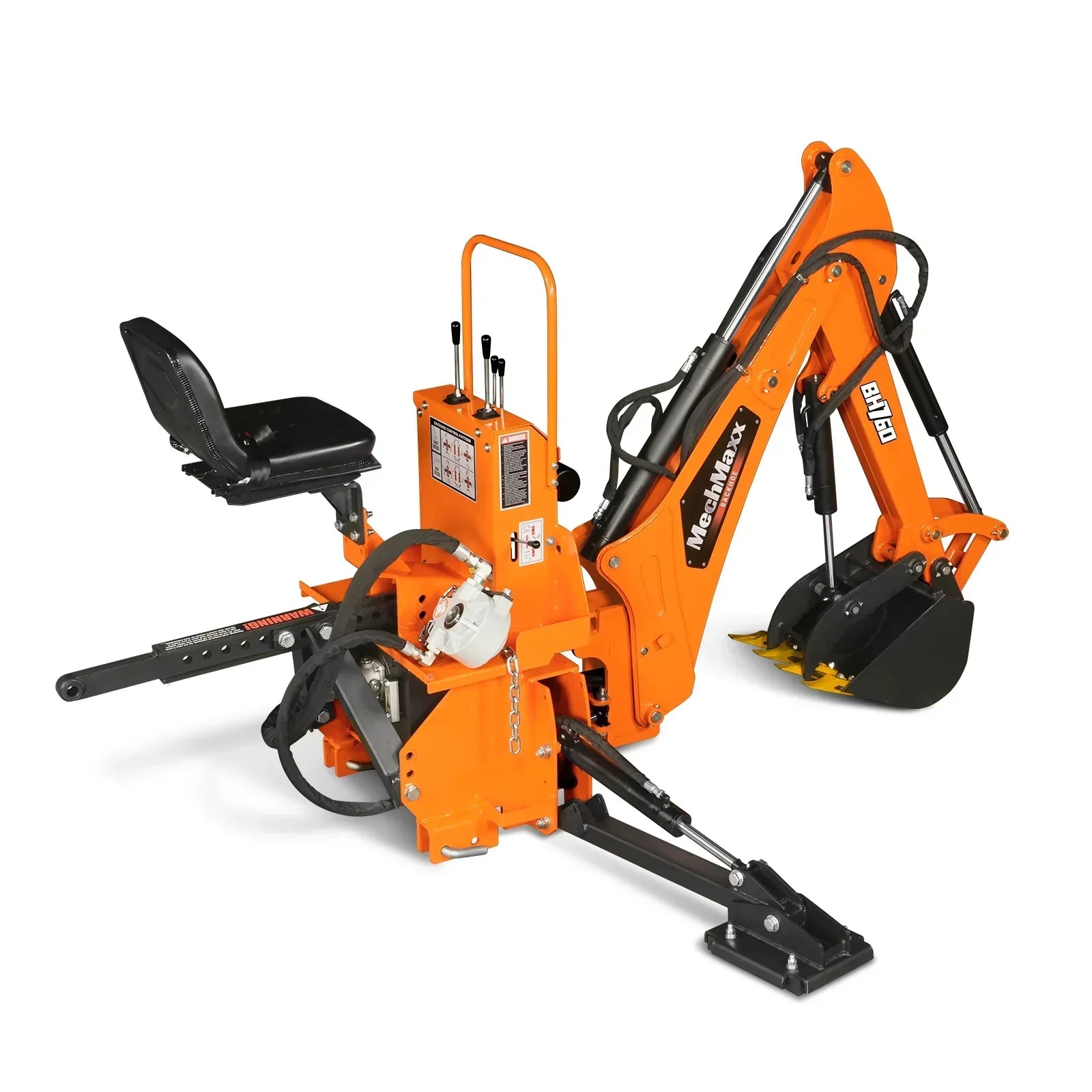

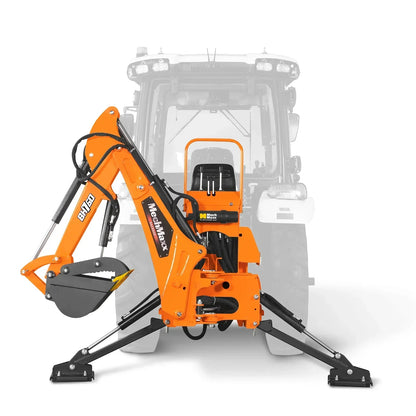

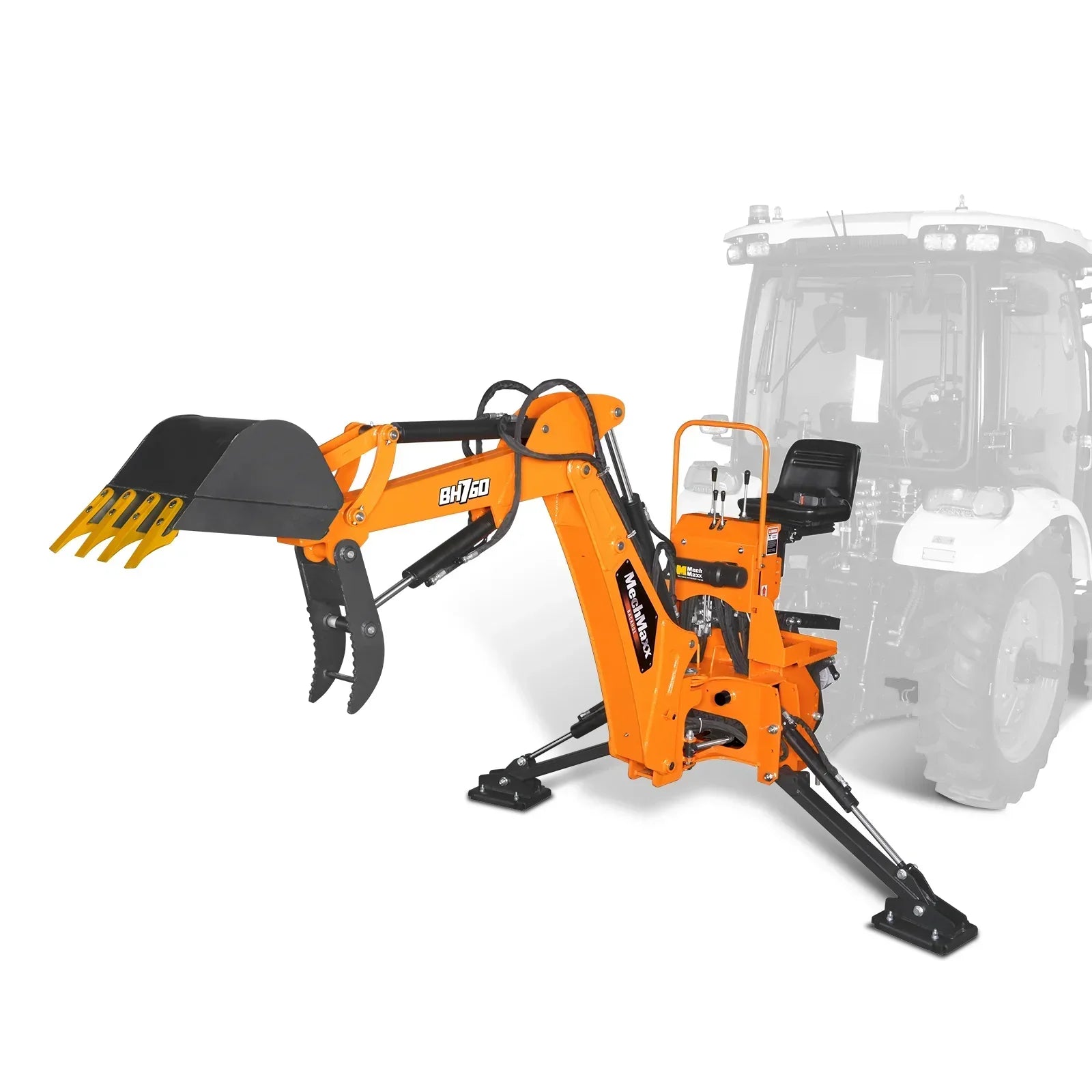

8' Tractor Backhoe Attachment with Hydraulic Thumb, 15" Bucket, Self-Contained Pump, for 20-100 HP, Cat. 1&2 Tractor, BH760

8' Tractor Backhoe Attachment with Hydraulic Thumb, 15" Bucket, Self-Contained Pump, for 20-100 HP, Cat. 1&2 Tractor, BH760

Regular price $2,049.50 USD
Regular price Sale price $2,049.50 USD
Sale Sold out
Shipping calculated at checkout.
Max. Digging Depth 8 ft Dipper Stick Cylinder Digging Force 2005 lbs
Digging Depth (two foot flat bottom) 7 ft 6 in Hydraulic Volume Requirements 5 to 6 GPM
Swing Arc 180 Degrees Hydraulic Pressure Requirements 2250psi
Loading Height (bucket at 60 °) 6 ft Hydraulic Tank Capacity 4.1 US Gal (15.5L)
Reach from Center Line of Swing Pivot 9 ft 9 in Hydraulic Type Recommended AW 46

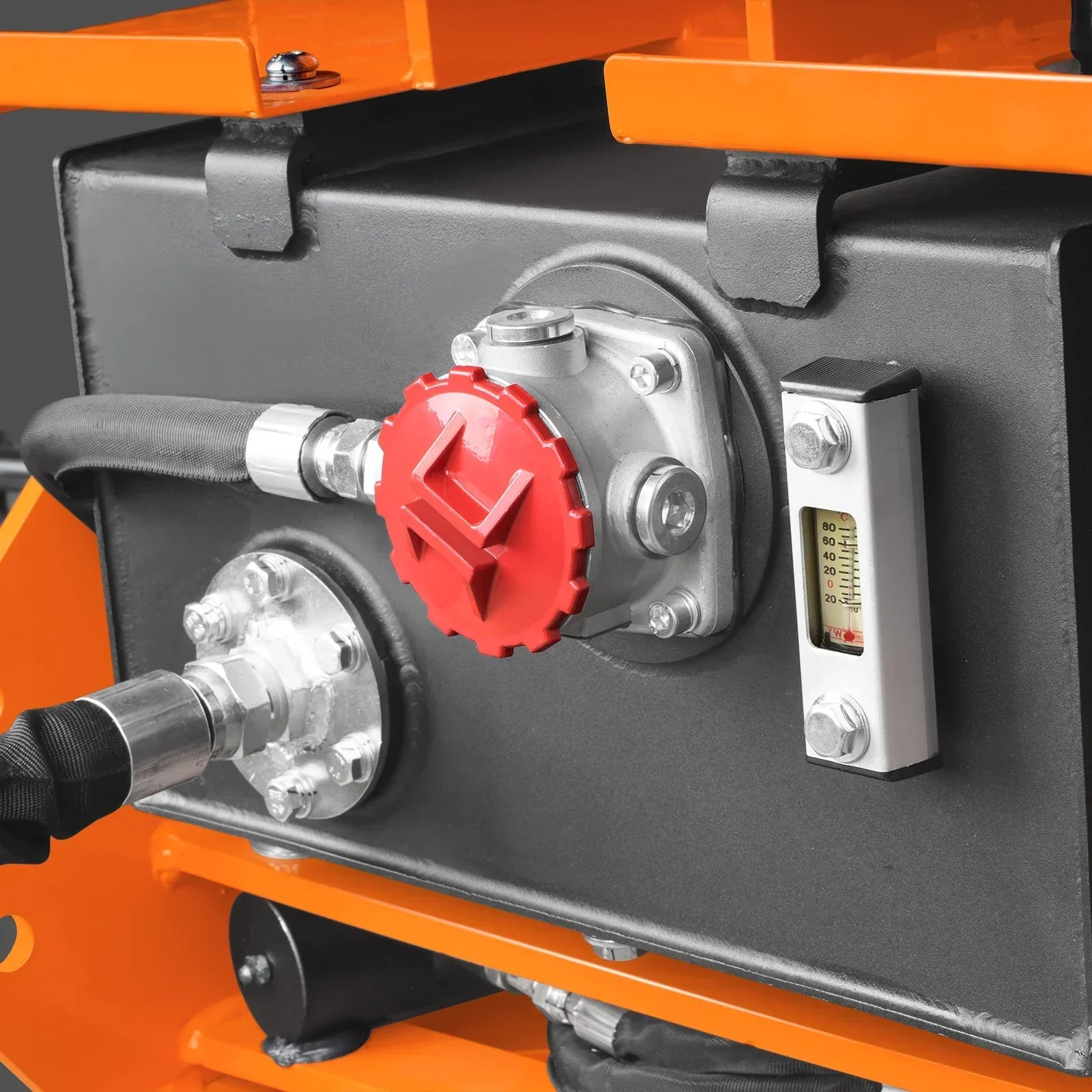

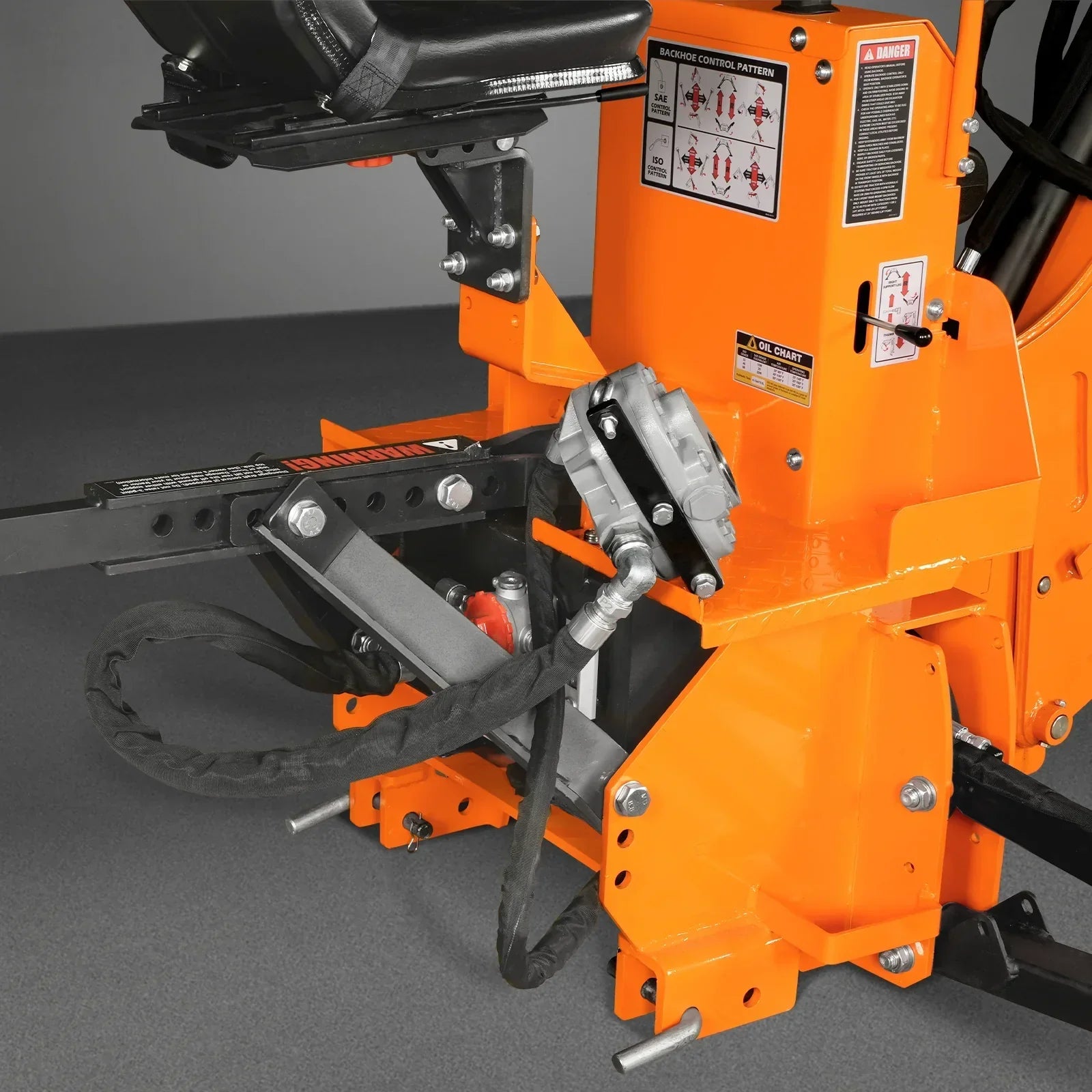

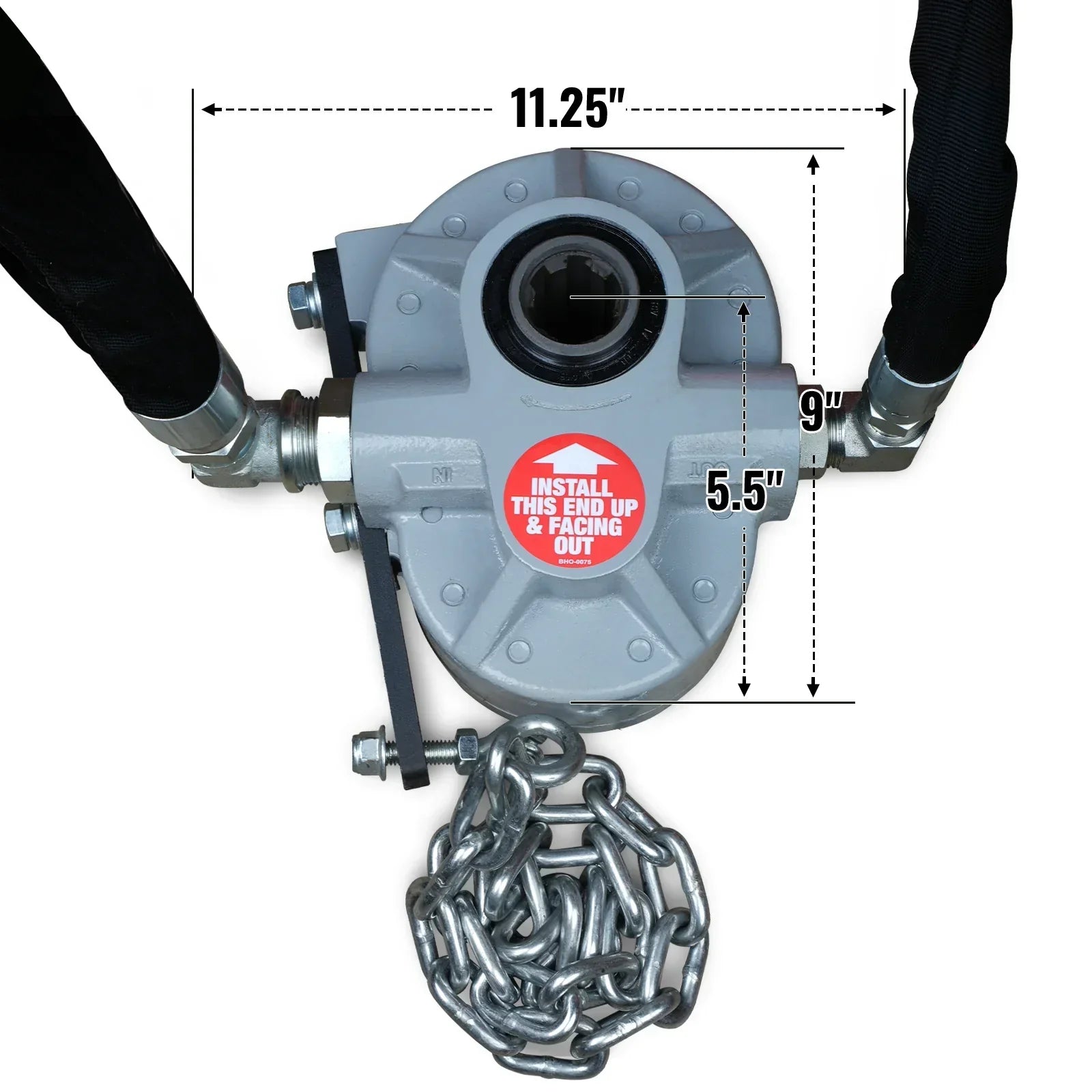

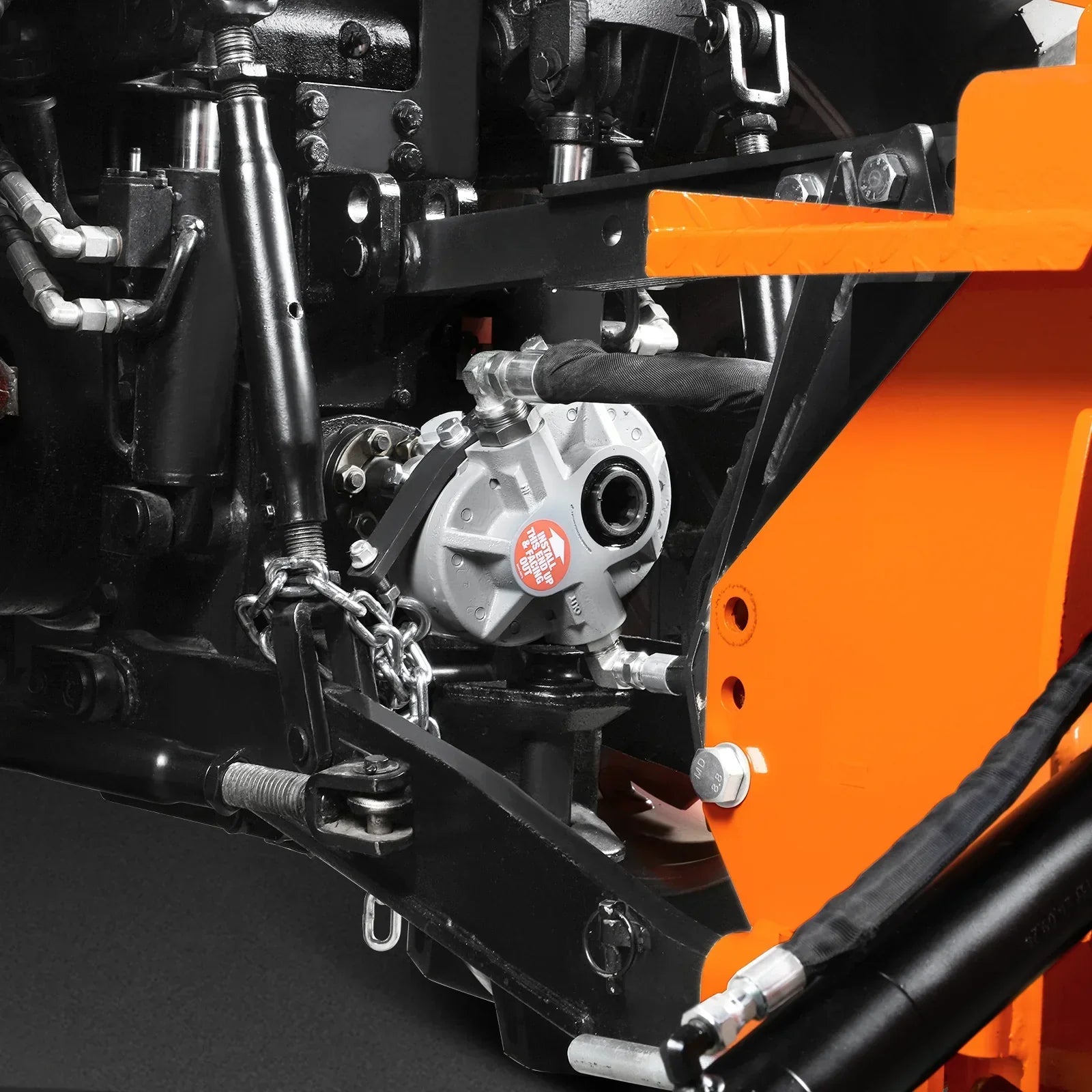

Transport Height (maximum) 5 ft 7 in Self-contained PTO Pump & Tank Included

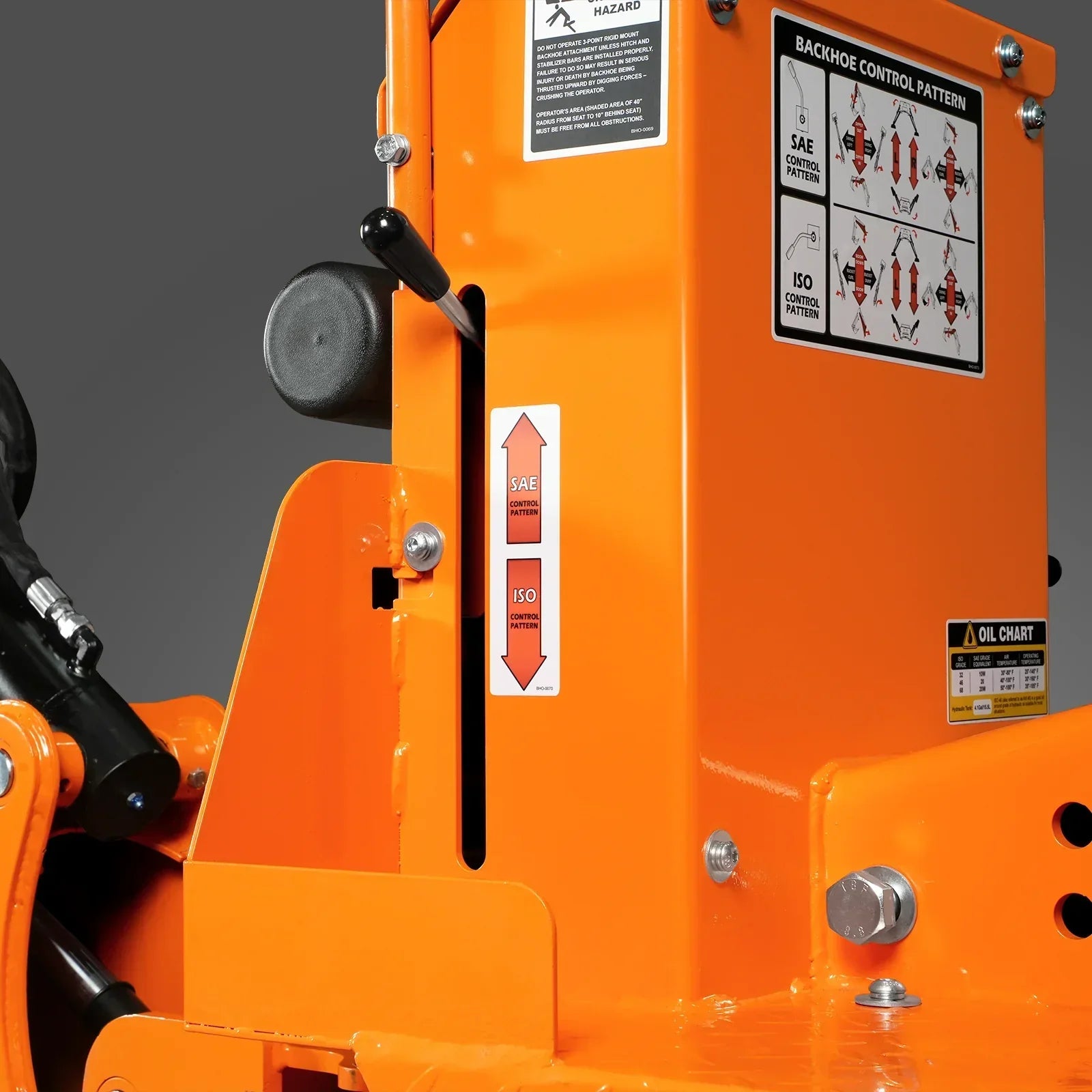

Bucket Rotation 180 Degrees ISO or SAE Switch Included
Loading Reach (bucket at 60 °) 3 ft 7 in Standard Thumb Hydraulic
Transport Overhang 4 ft 3 in Standard Bucket Size 15 in (4 teeth)
Undercut 2 ft 3 in PTO Speed 540 RPM

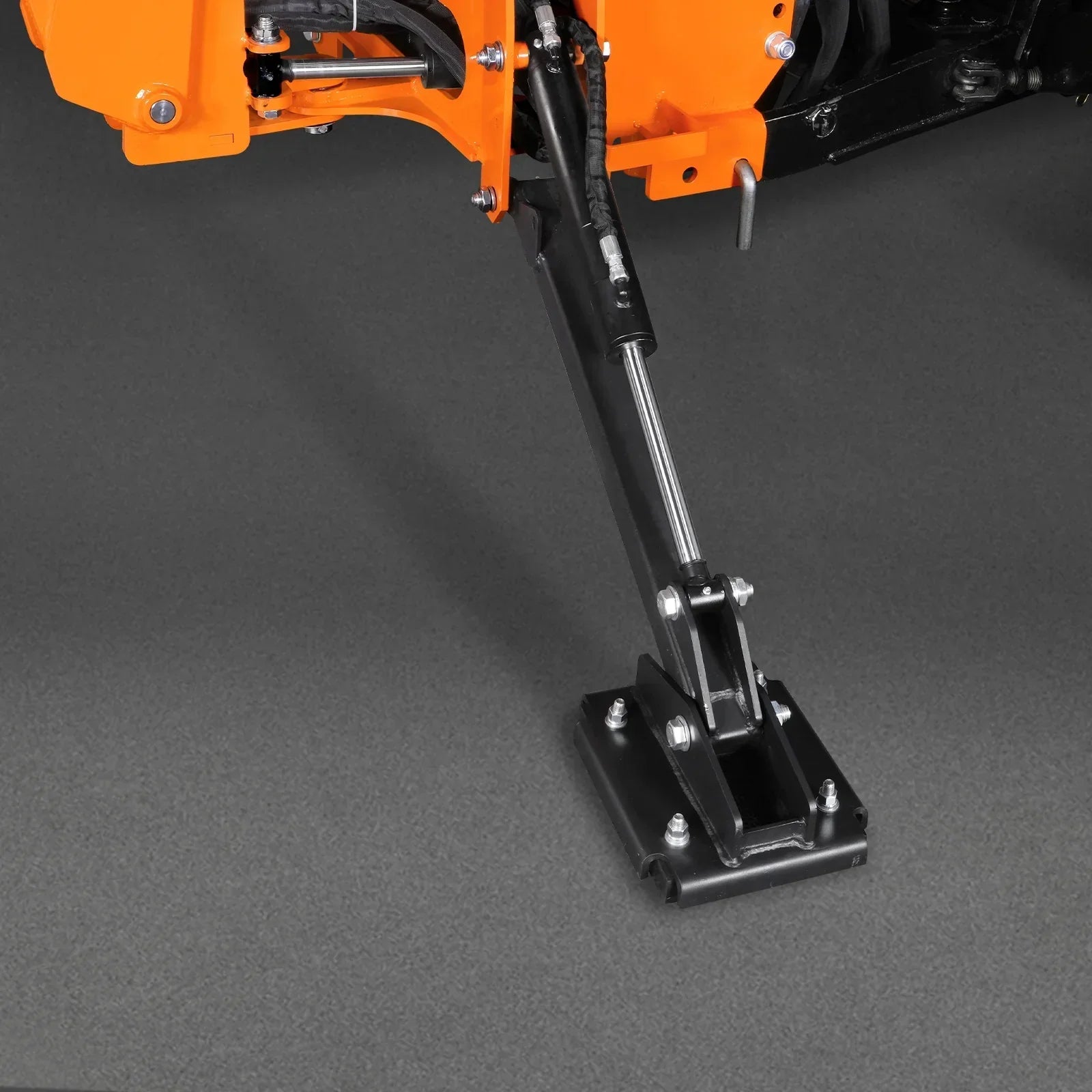

Stabilizer Spread (down position) 6 ft 7 in PTO Connection 1-3/8" 6 Spline
Stabilizer Spread (up position) 5 ft 9 in Recommended PTO HP 20 to 100 HP

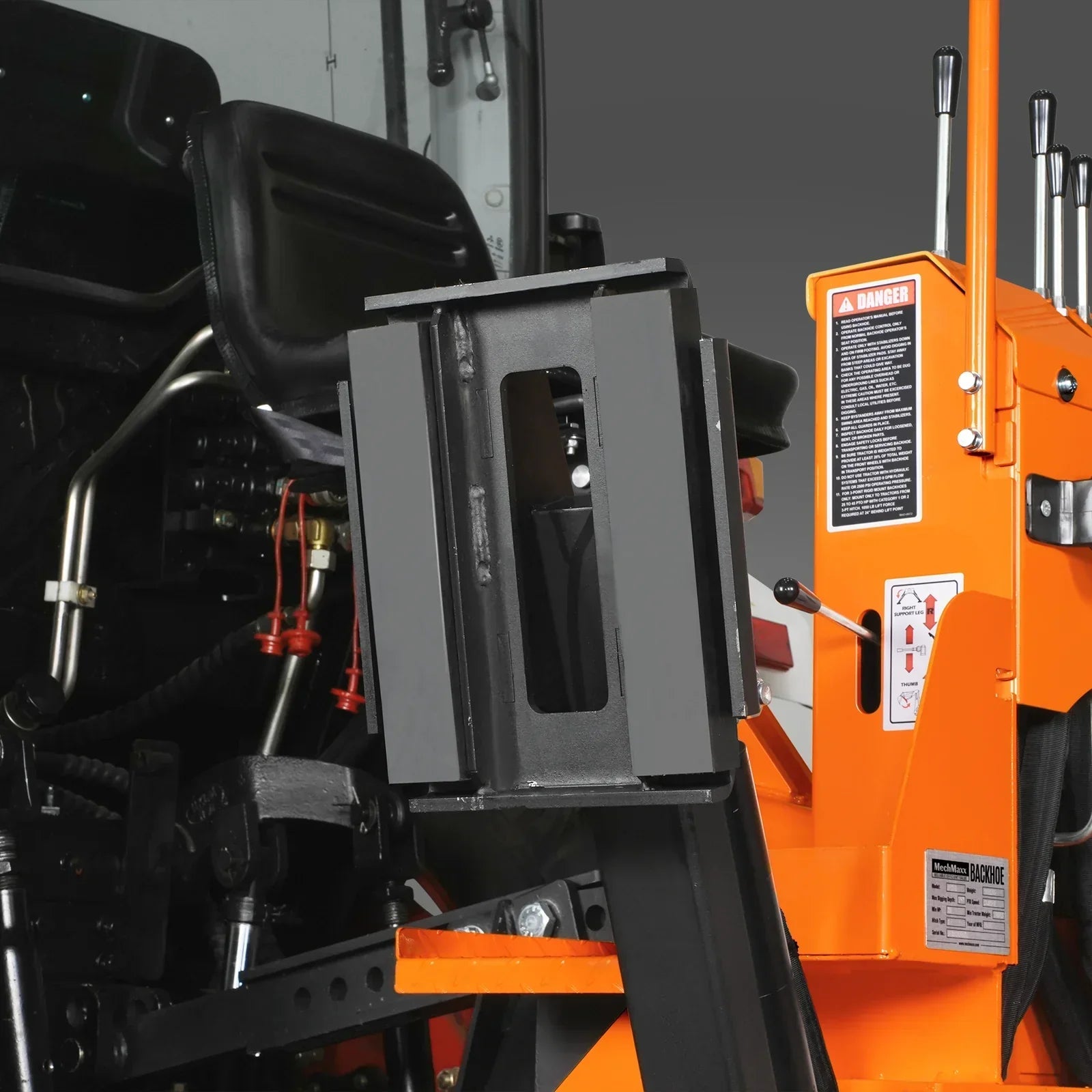

Stabilizer Spread (lifting height) 3 ft 8 in 3-Point Hitch CAT I & II
Transportation Height (maximum altitude) 8 ft 4 in Min Tractor Weight 2300 lbs
Loading Height (bucket at 180 °) 9 ft 7 in Min Tractor Rear Lift Capacity 1392 lbs
Transport Overhang (maximum) 4 ft 5 in Packing Size (LxWxH) 57 x 30 x 71 in
Bucket Cylinder Digging Force 2840 lbs Weight with Bucket (N.W/G.W.) 1160/1343 lbs
Regarding tractor compatibility, ensure that the tractor’s PTO HP and 3-point hitch are compatible with the backhoe, and that it meets the minimum weight requirement for safe operation. If the tractor is too light, it can become unstable during travel or operation. To improve stability and reduce tipping hazards, add front ballast as needed. Additionally, take into account factors like speed and terrain slope. Above all, always prioritize safety during operation.



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
