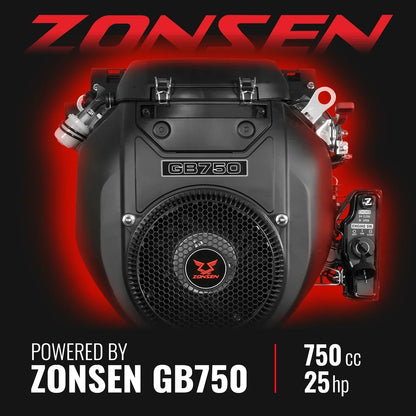

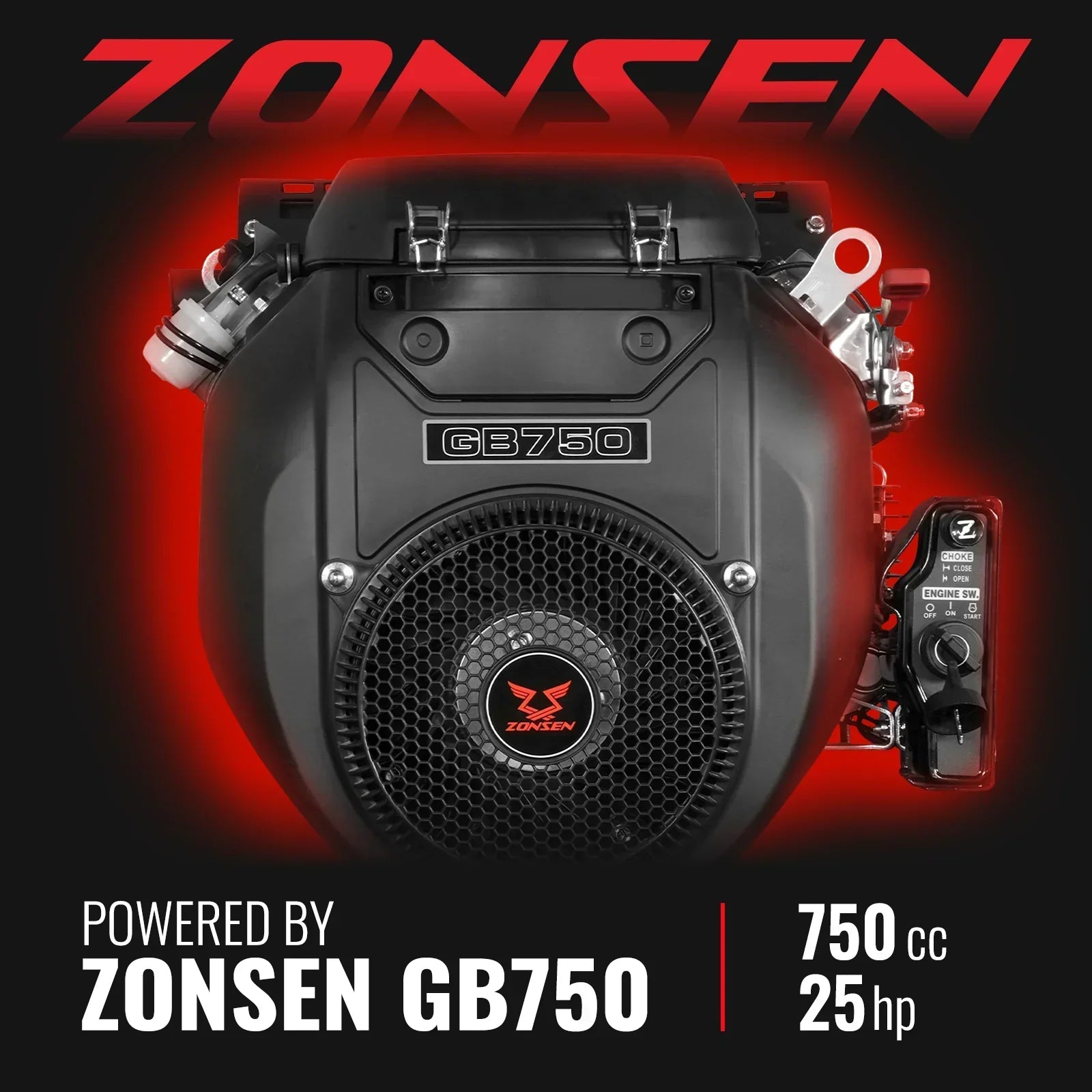

Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling
Blade Material
A8 （5Cr8MoVSi）
Displacement
750 cc；25 HP
Blades Type
Double Edge Blade
Rated Power
15.5 kw / 3600 RPM
Flywheel System
Open Top Flywheel 26 in x 1 in Twin
Max. Net Torque
45 N·m / 2800 RPM
Discharge Chute
360 Degree Rotating
Fuel Capacity
3.17 gal
Emergency Stop
Stop Bar
Recommended Oil
SAE 10W-30 Classification SE or Higher

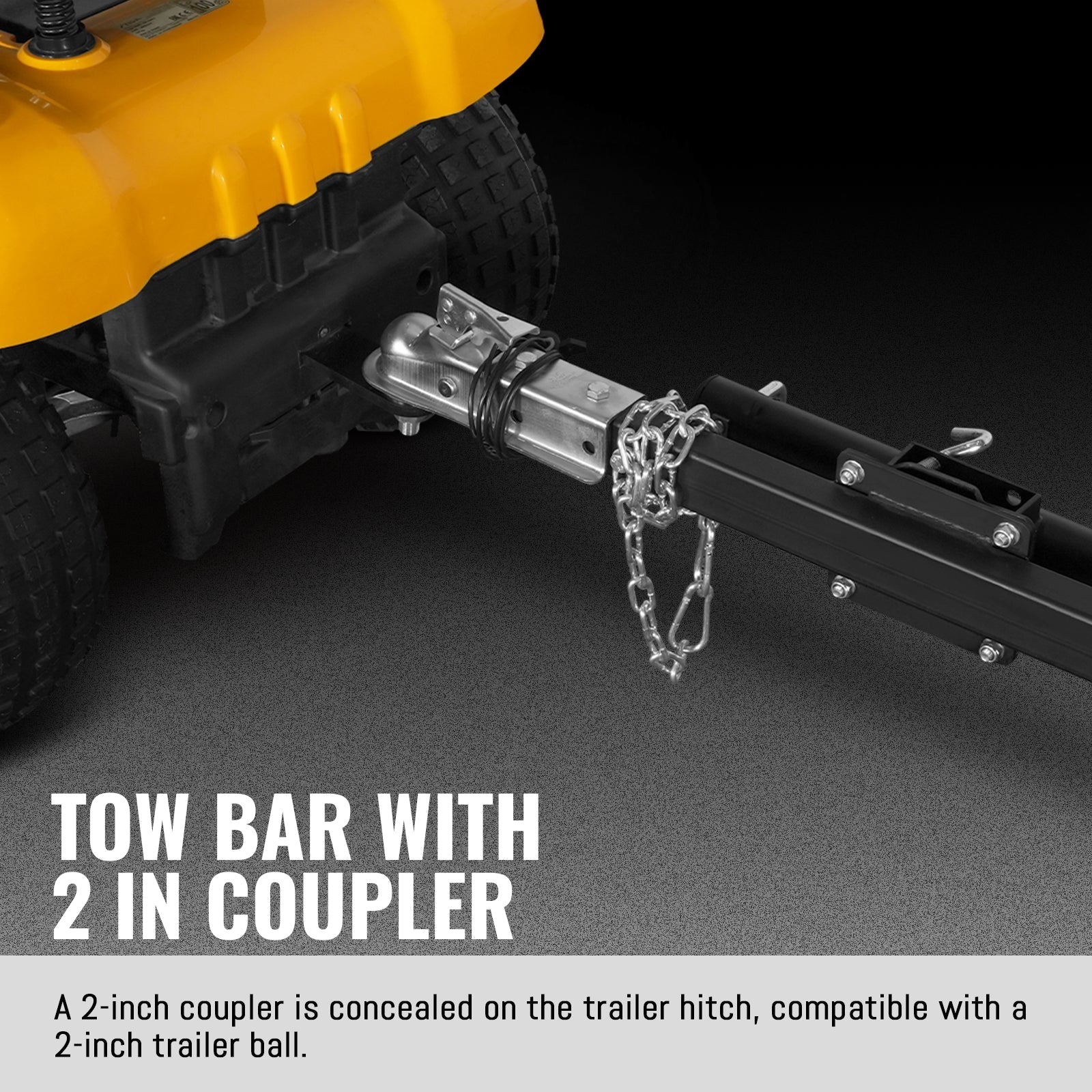

Towing Length
Tow Bar With 2 in Coupler
Hydraulic Tank
6.87 gal

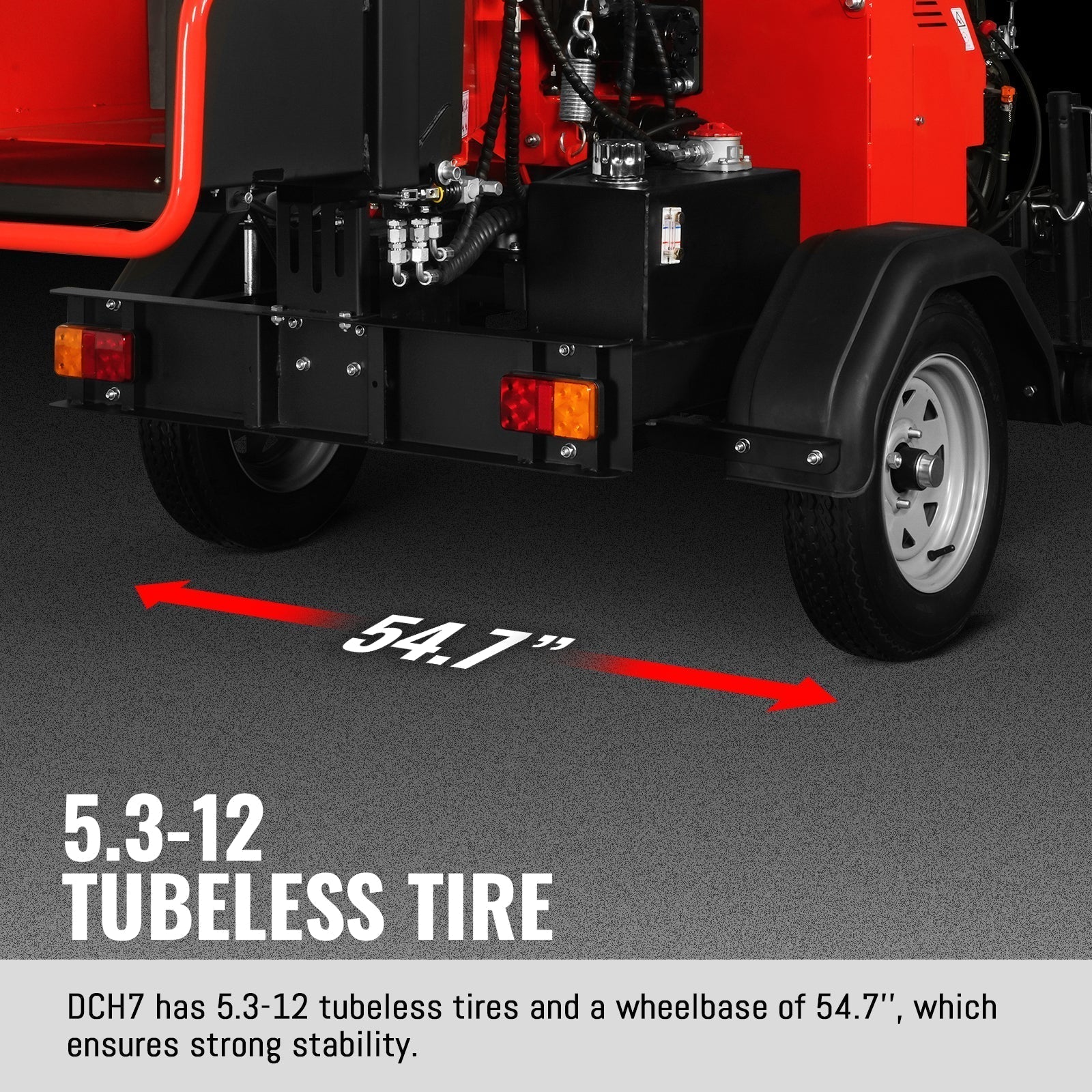

Wheel
5.3-12 Tubeless
Starting
Electric Starting
Wheelbase
52.5 in
Battery
36Ah 12V Lead-Acid Battery
Axle
Damping Torsion Axle
Ignition System
CDI
Max. Speed
50 mph
Governor System
Mechanical Centrifugal Type
Chassis
Channel Steel Welded Frame
Belt
2 x V-Belts
Package Method
Iron Fram With Black Film
Belts Material
Kevlar
Weight (N.W./G.W.)
1389 / 1587 lbs
Clutch
Centrifugal Clutch

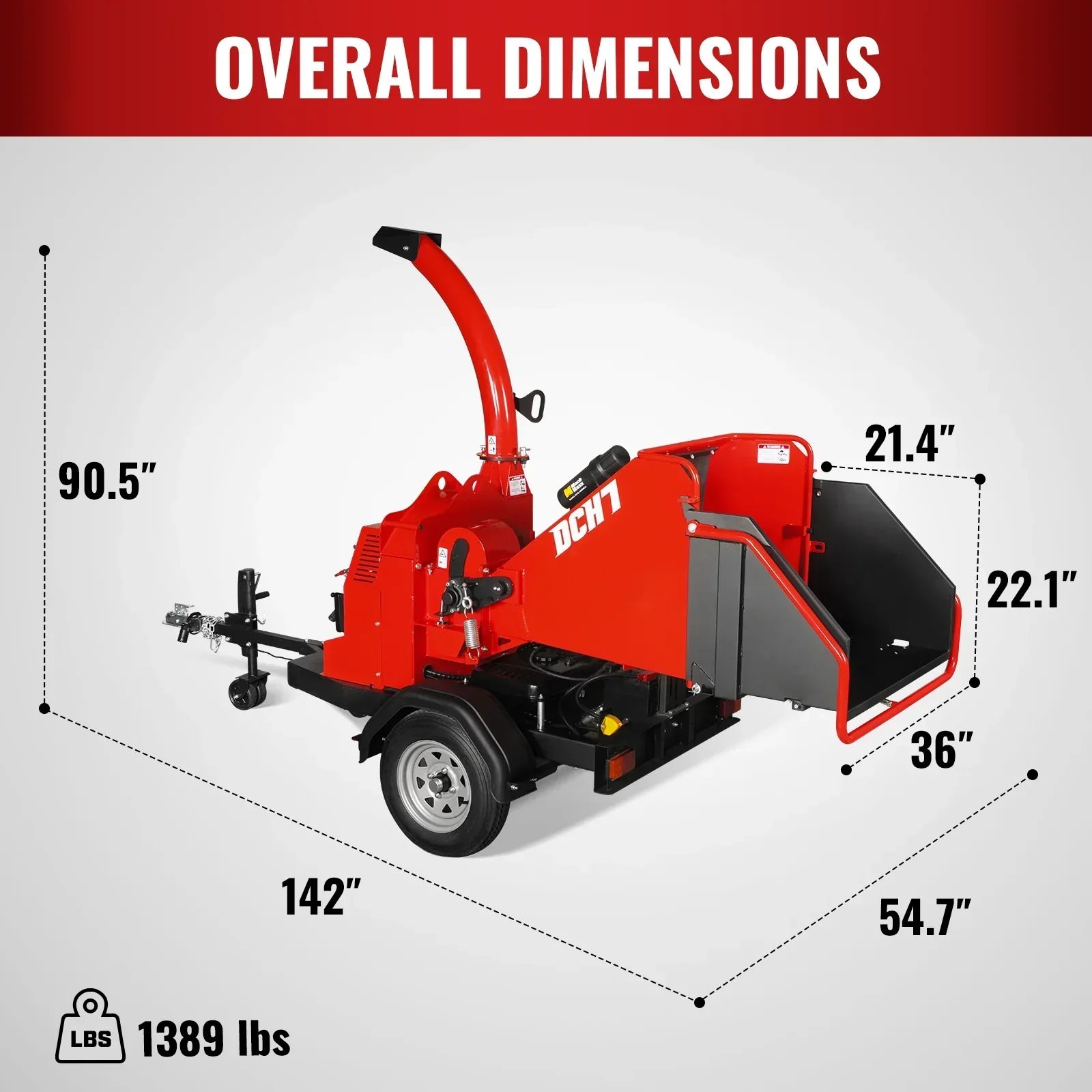

Product Size (L*W*H)
137 x 55 x 90 in

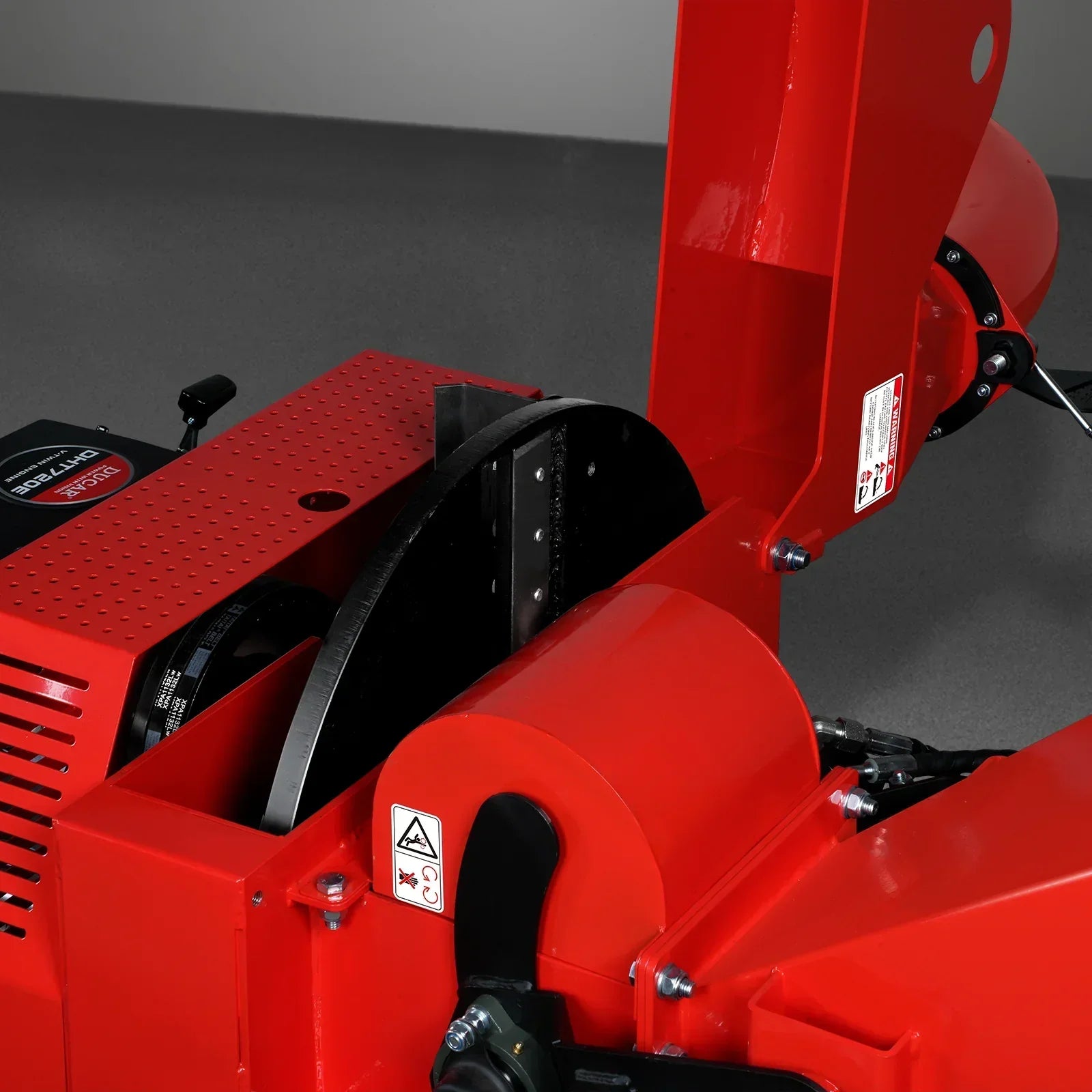

Cutting Method
Disc
Packing Size (L*W*H)
87 x 46 x 51 in

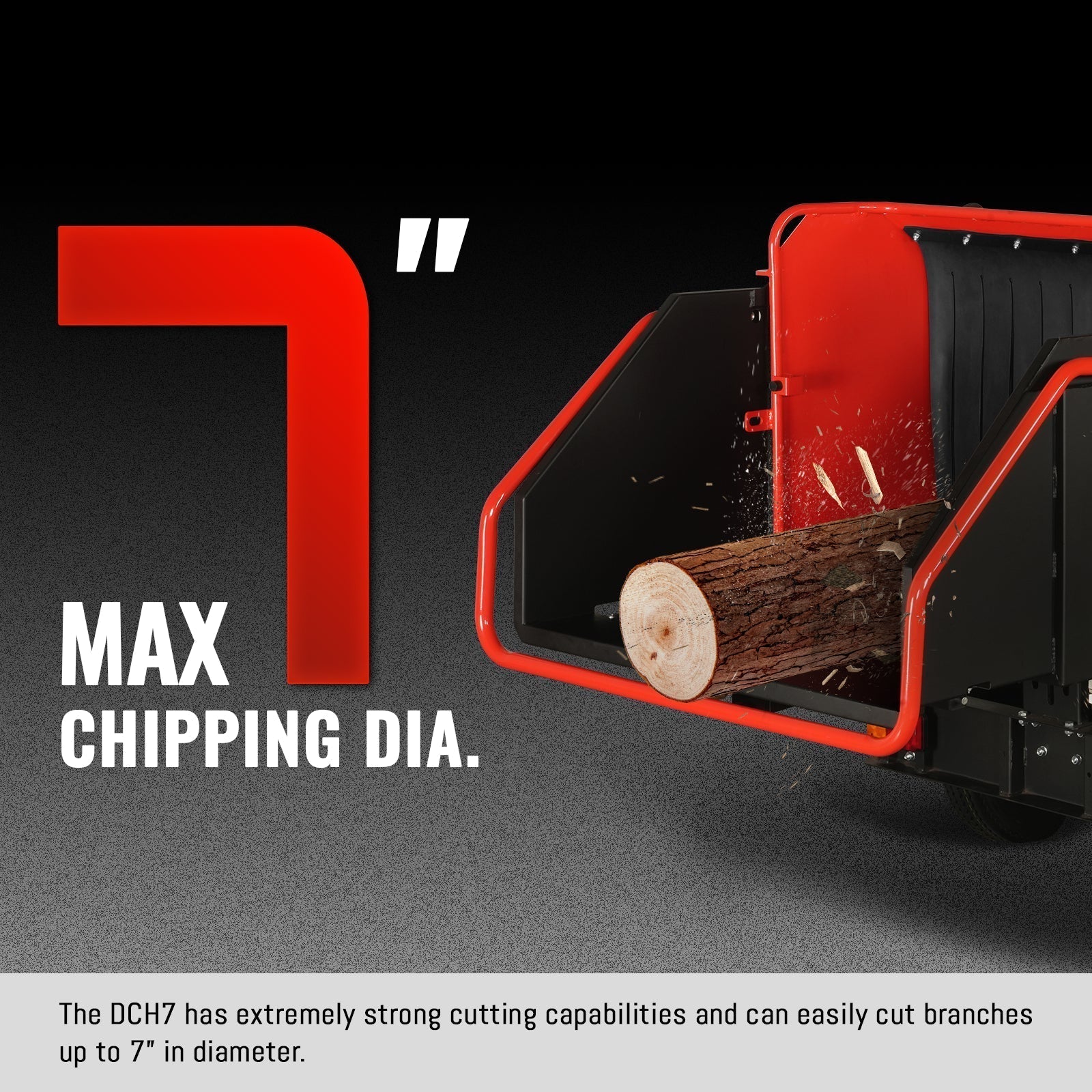

Max. Chipping Dia.
7 in
Machine Warranty
2 Years

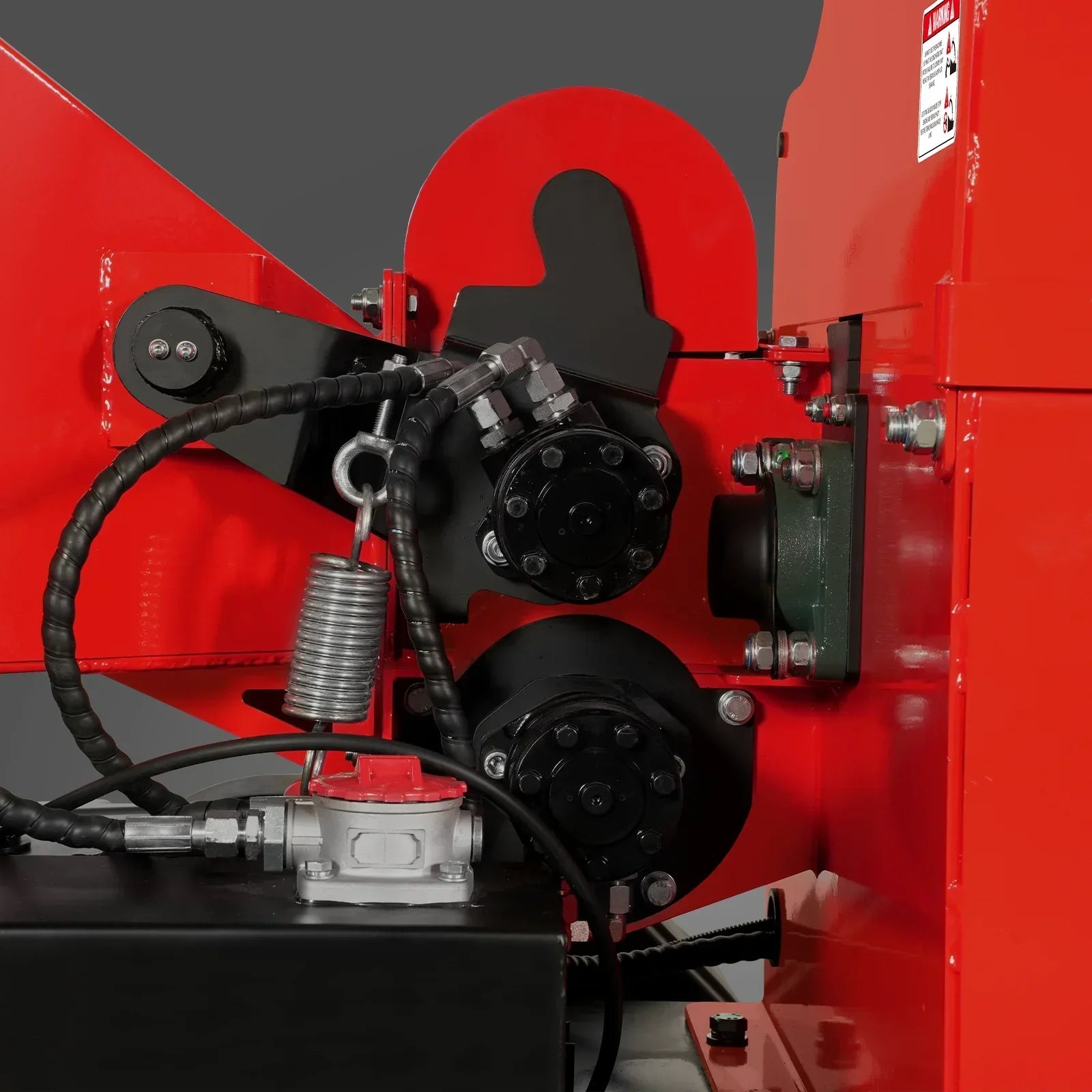

Feed Roller
7.5 in x 6.5 in
Engine Warranty
2 Years
