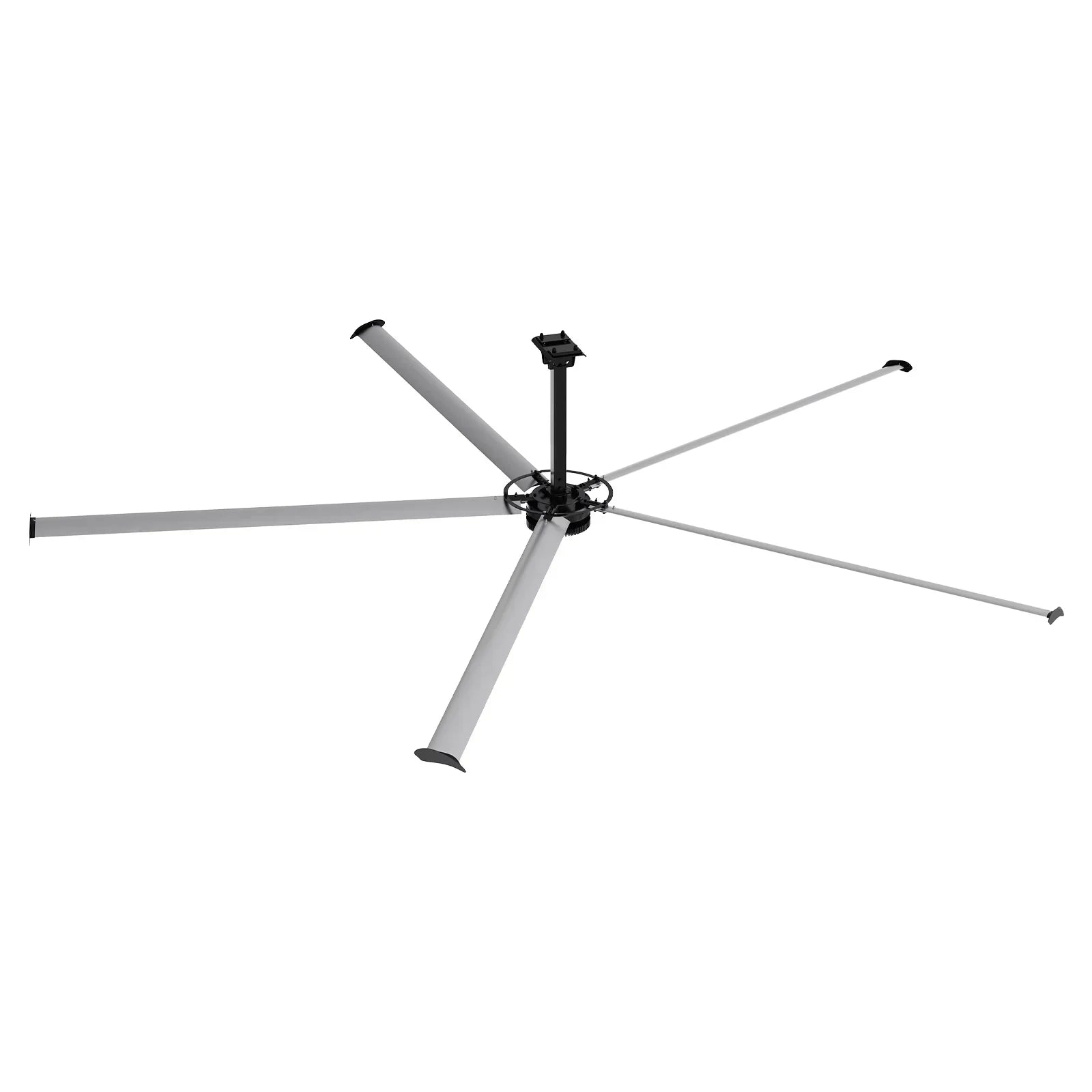

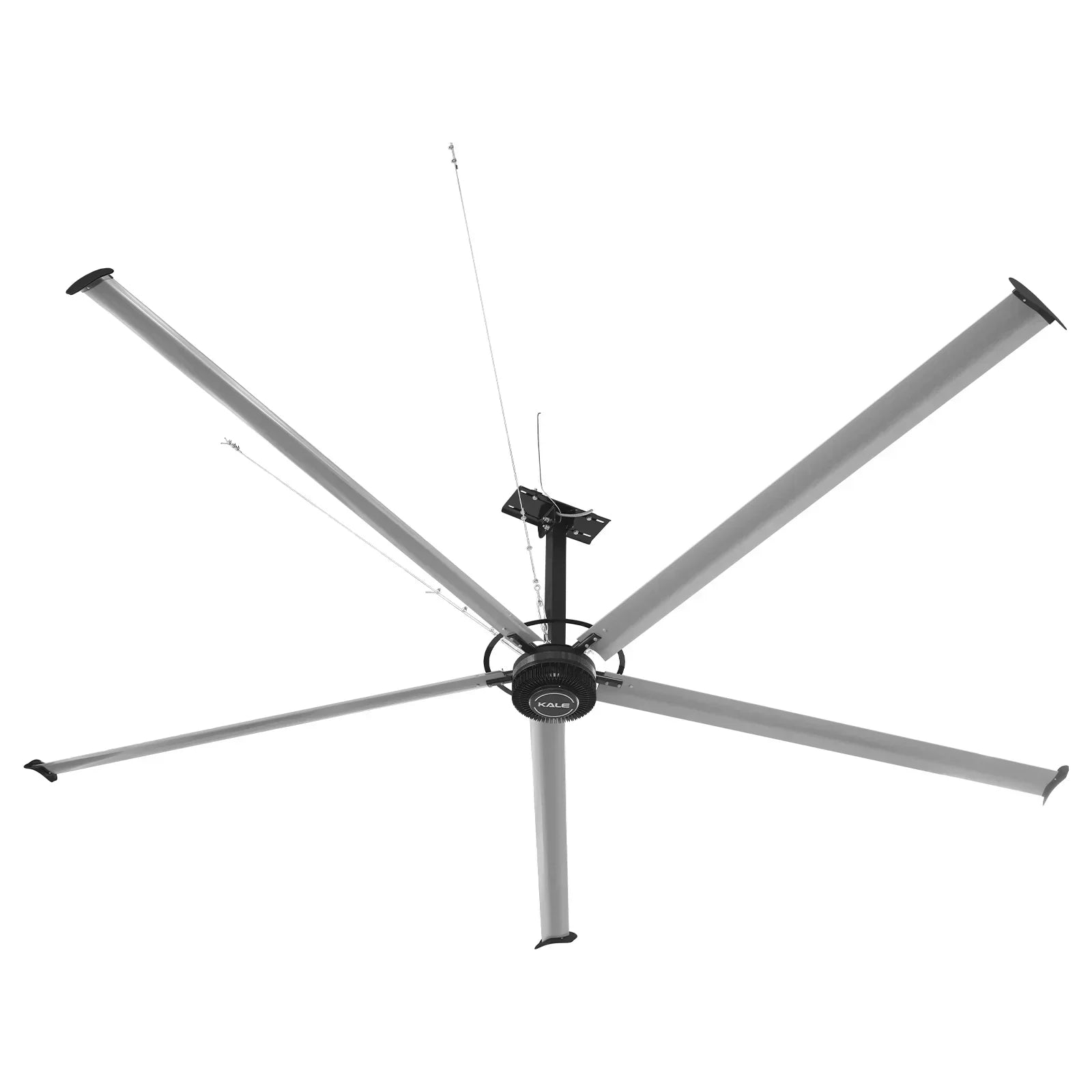

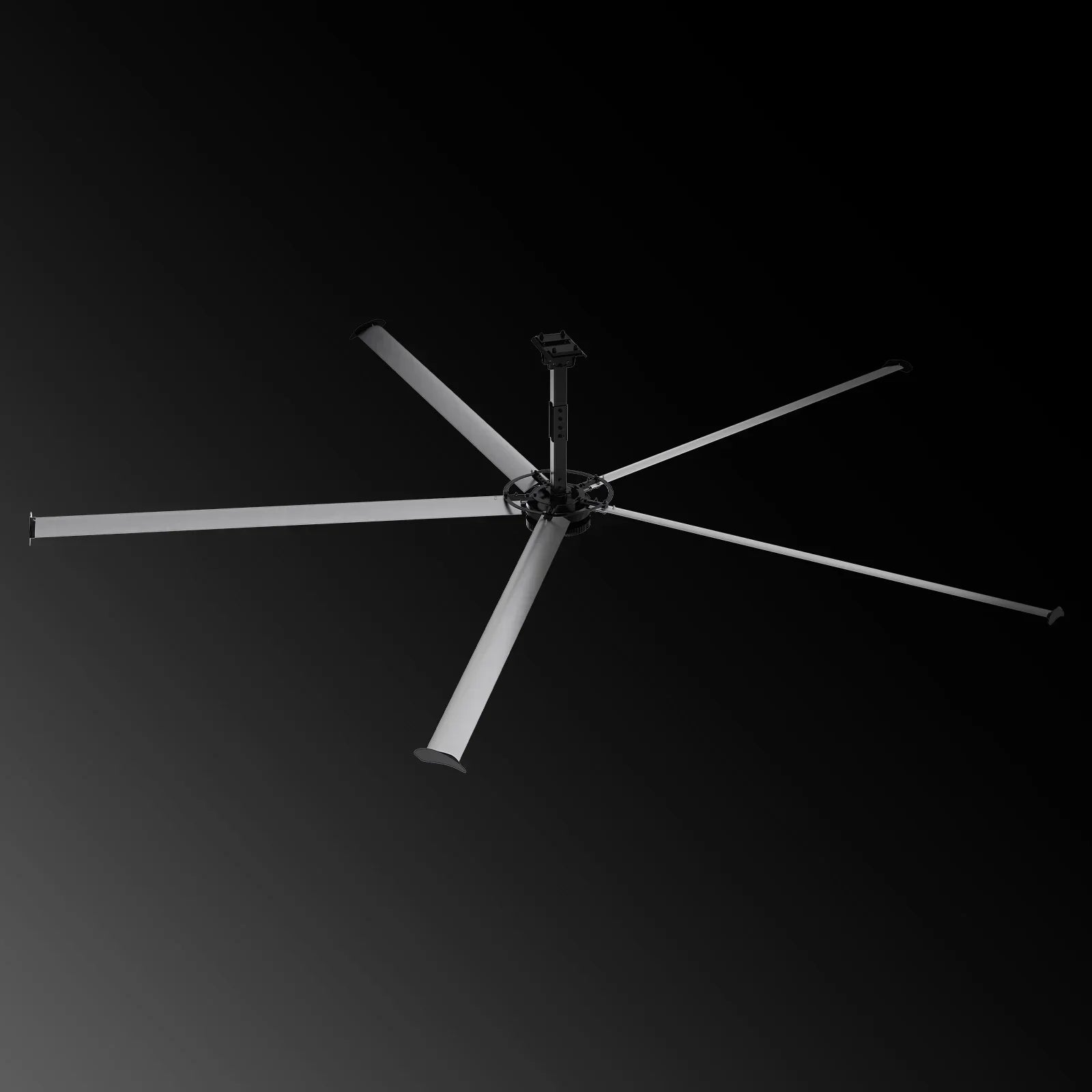

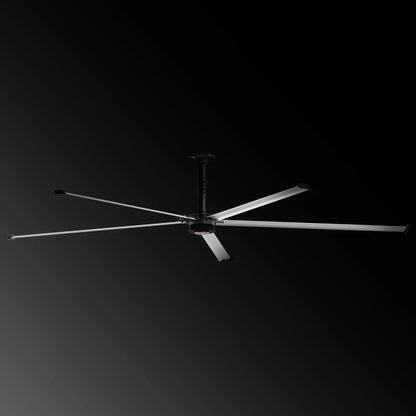

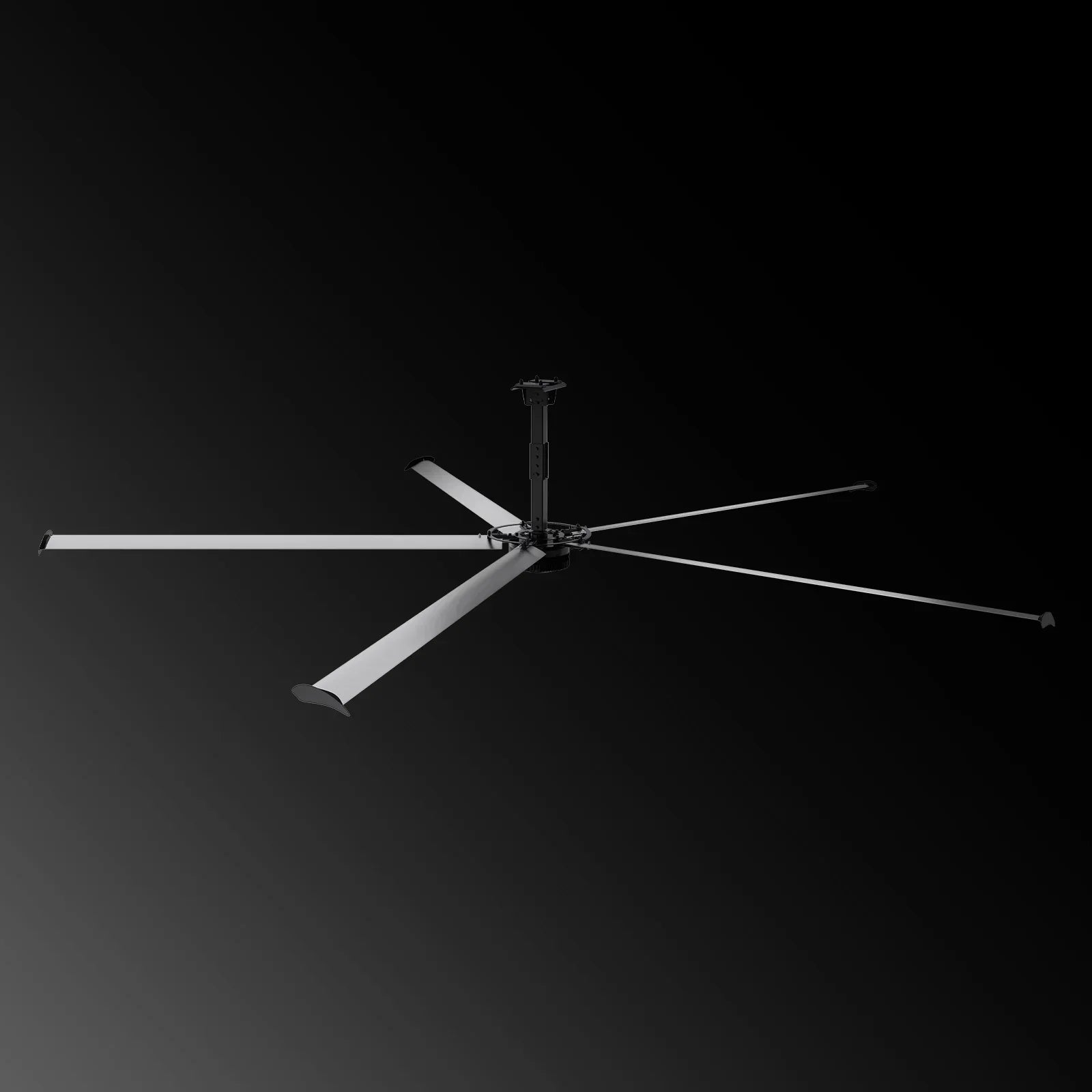

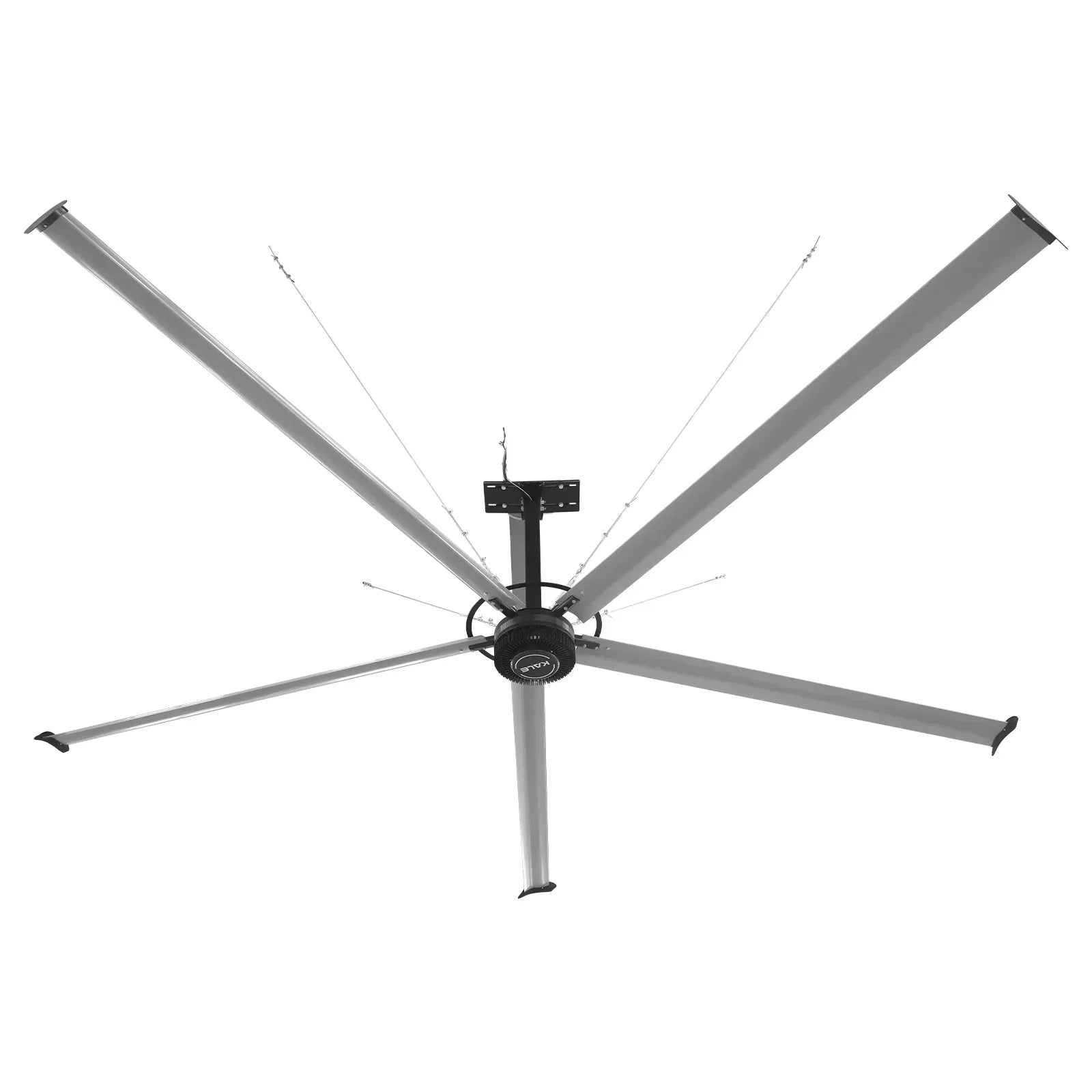

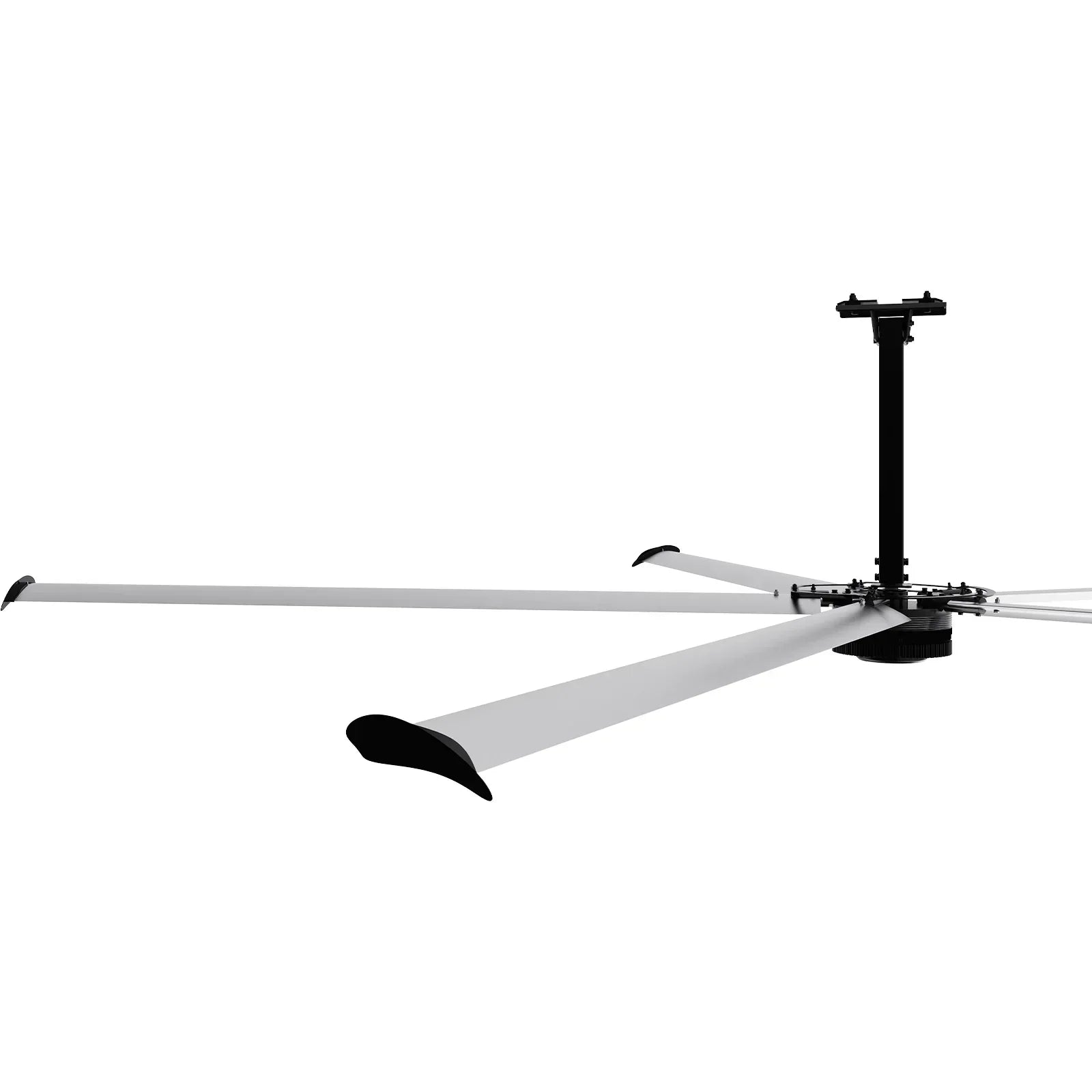

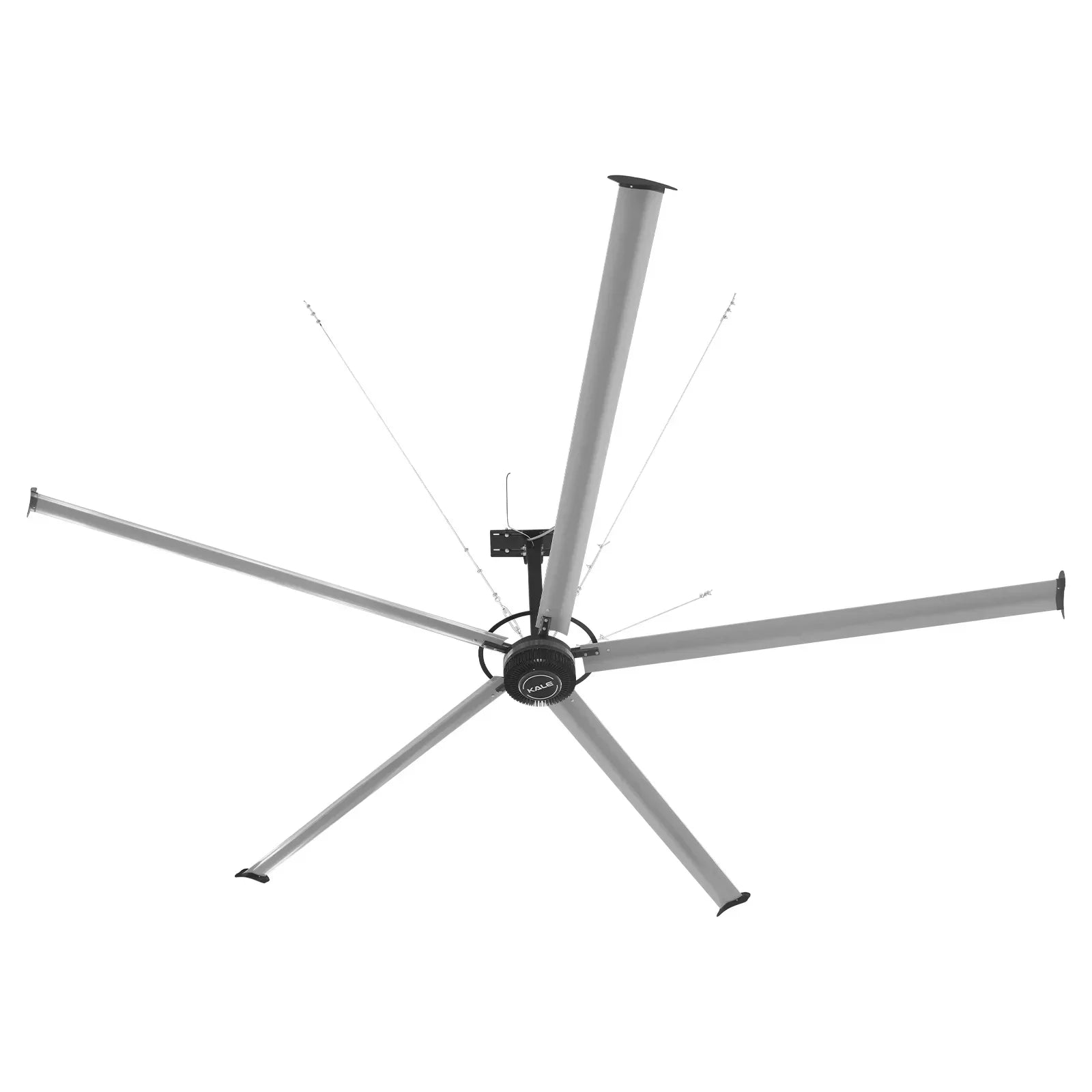

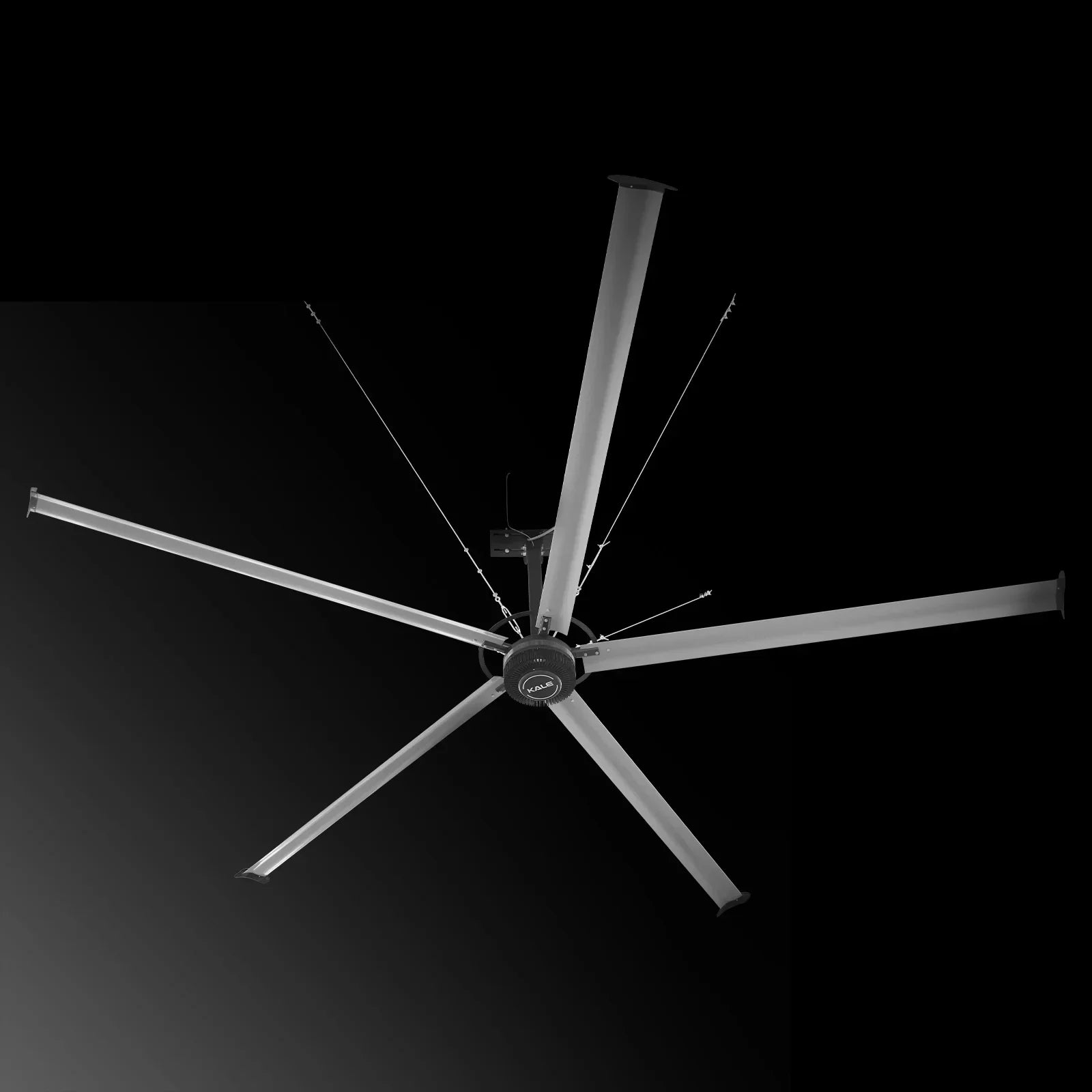

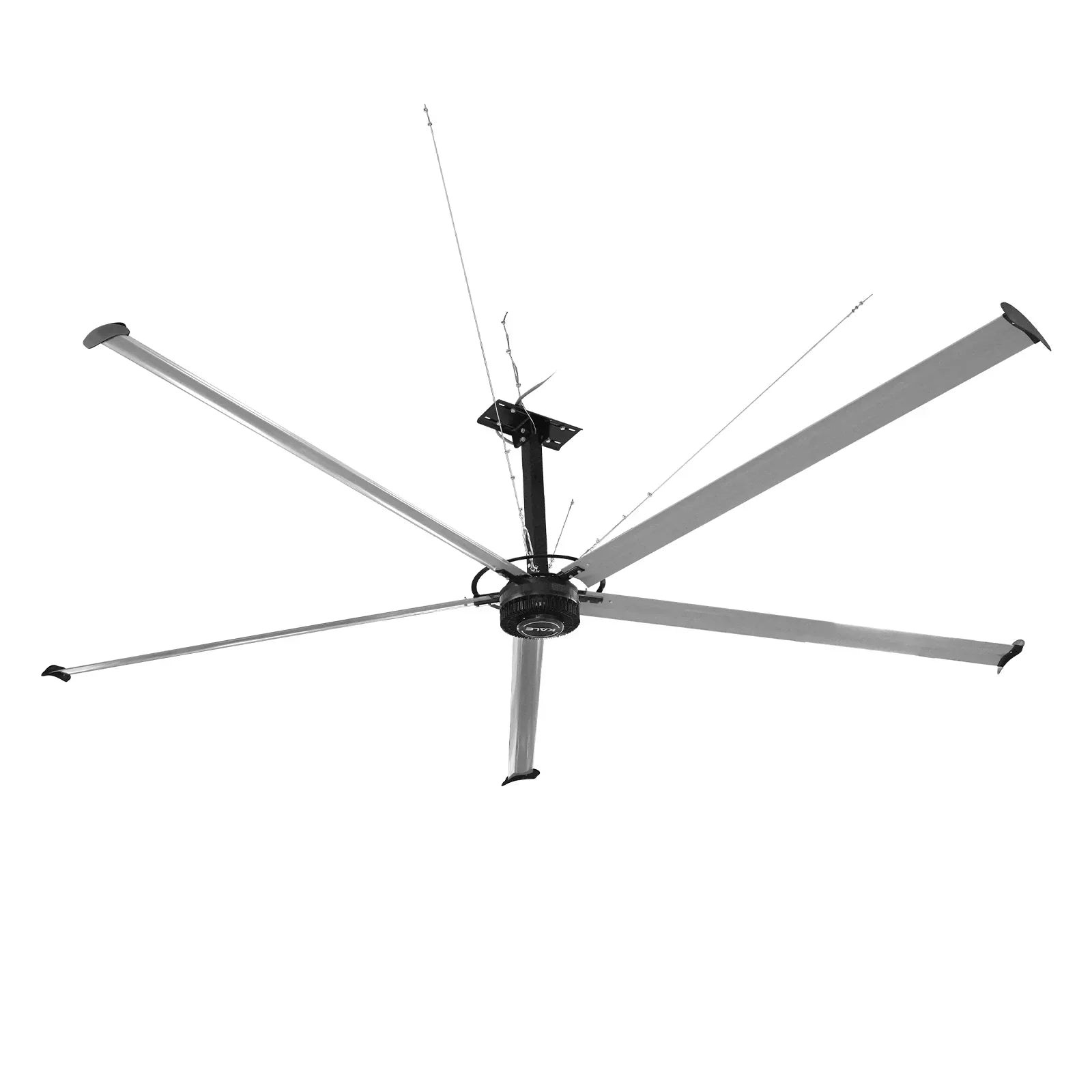

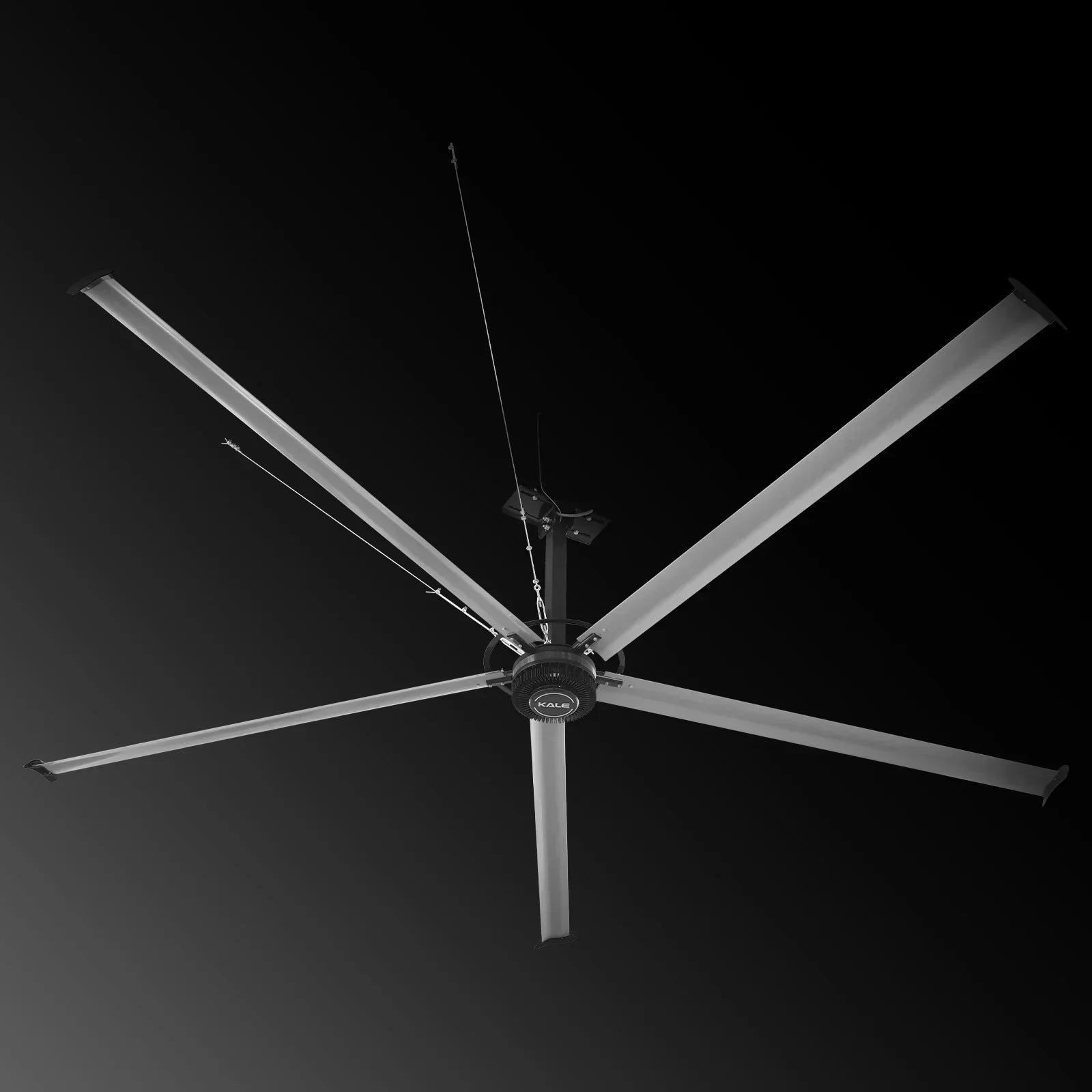

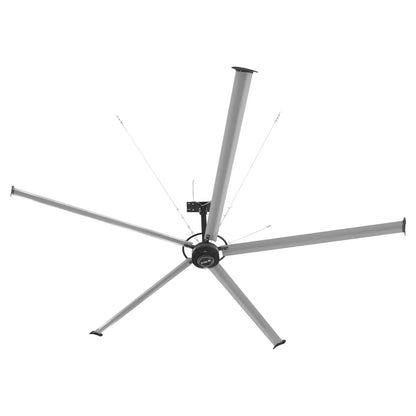

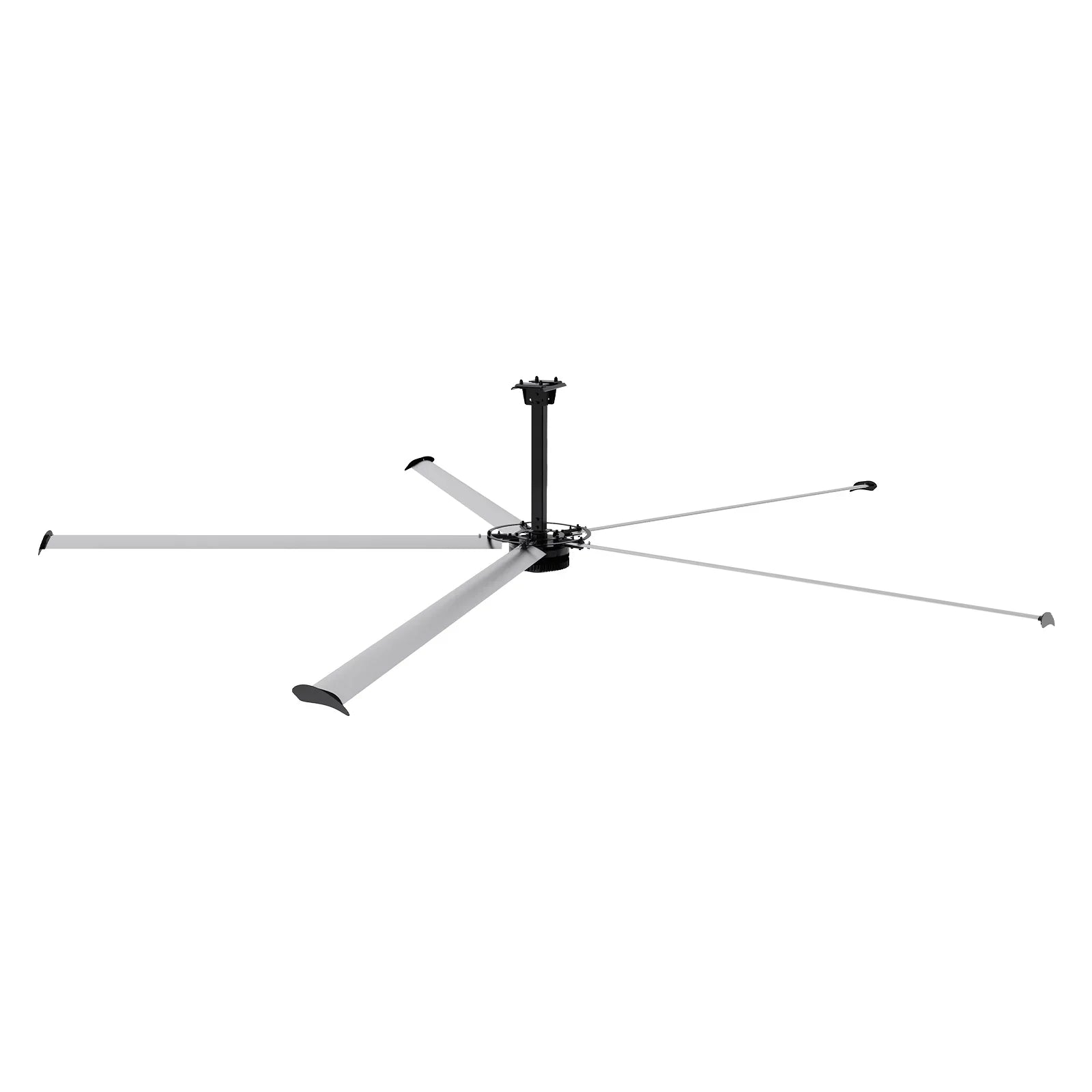

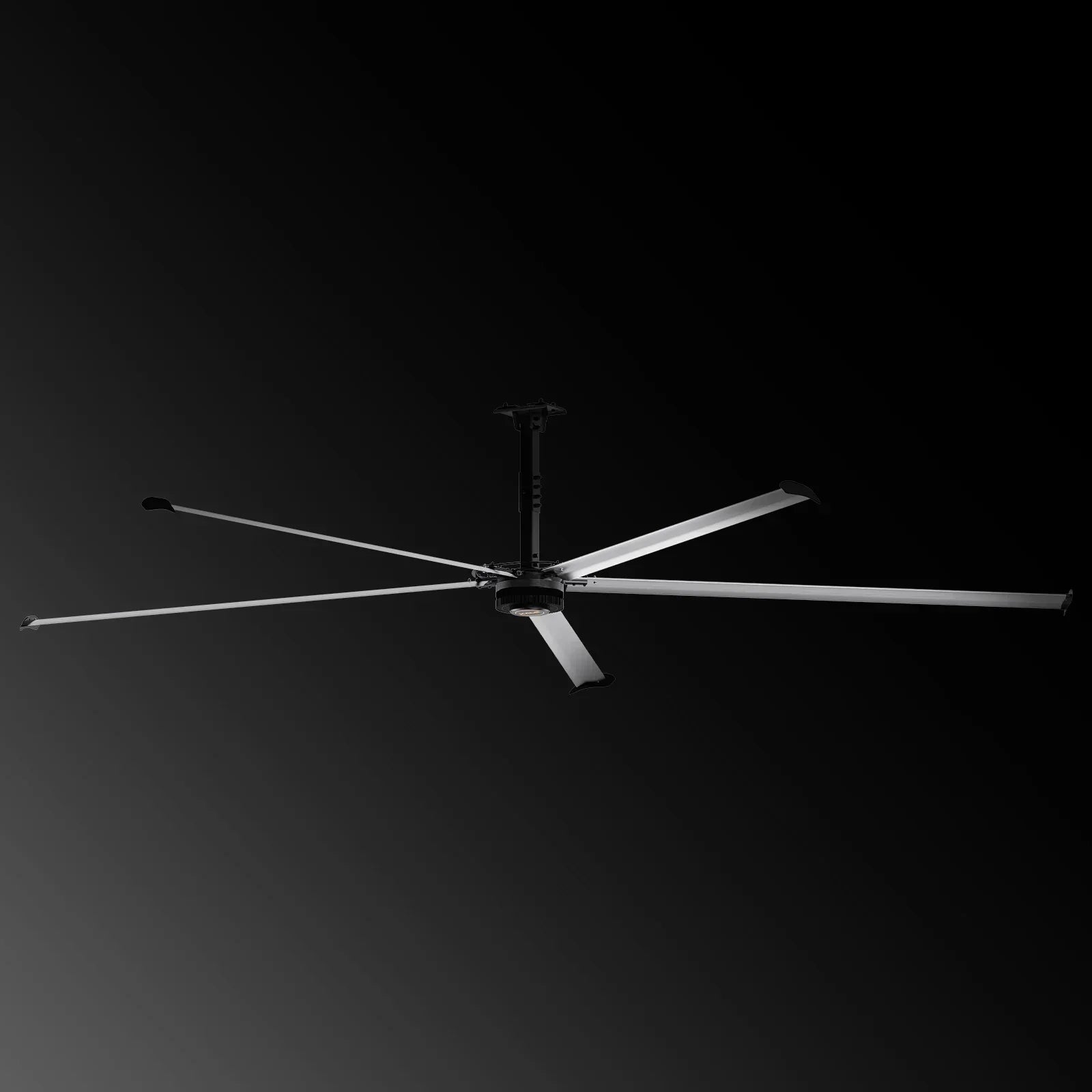

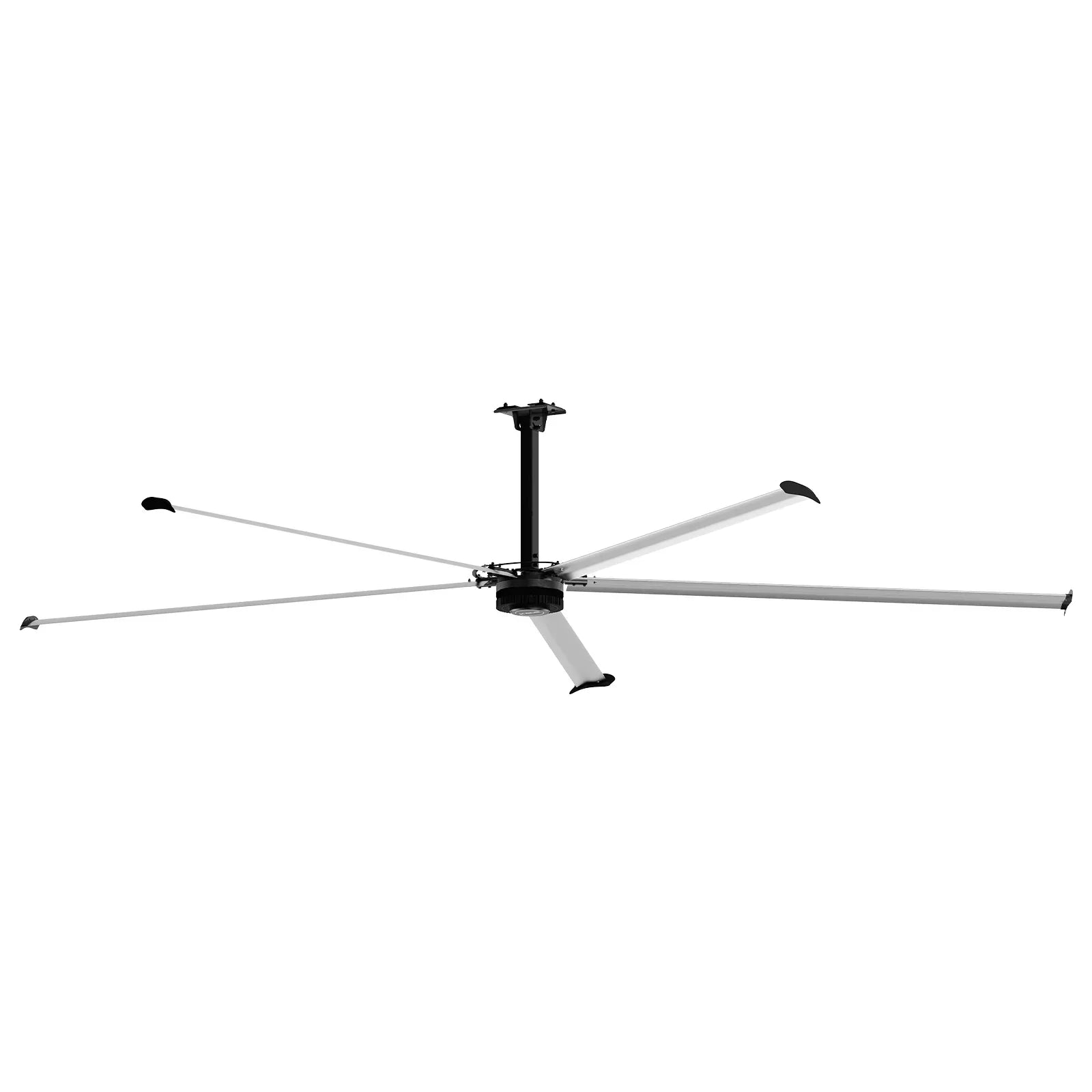

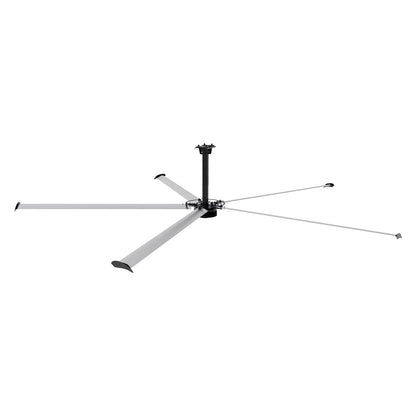

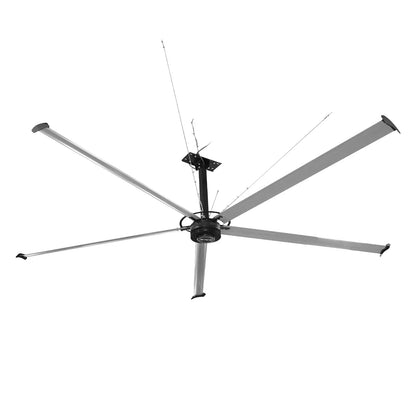

24FT HVLS Industrial Ceiling Fan 220V 1-Phase - Energy Efficient Large Area Air Circulation Fan for Warehouses & Factories, 24FT1PH

24FT HVLS Industrial Ceiling Fan 220V 1-Phase - Energy Efficient Large Area Air Circulation Fan for Warehouses & Factories, 24FT1PH

Regular price $1,999.50 USD
Regular price Sale price $1,999.50 USD
Sale Sold out
Shipping calculated at checkout.
Model 24FT1PH
Certifications cULus,CE,SAA
Fan Diameter 24FT
Number of Blades 5
Cooling Coverage 16146ft²
Voltage 220V ±10% 1PH (L+N)
Full Load Current 4.9 A
Fan Watts 1.5KW
RPM Range 10-54 RPM
Air Flow@Max Speed 549,144 CFM

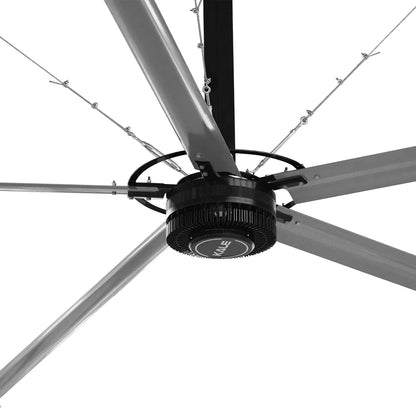

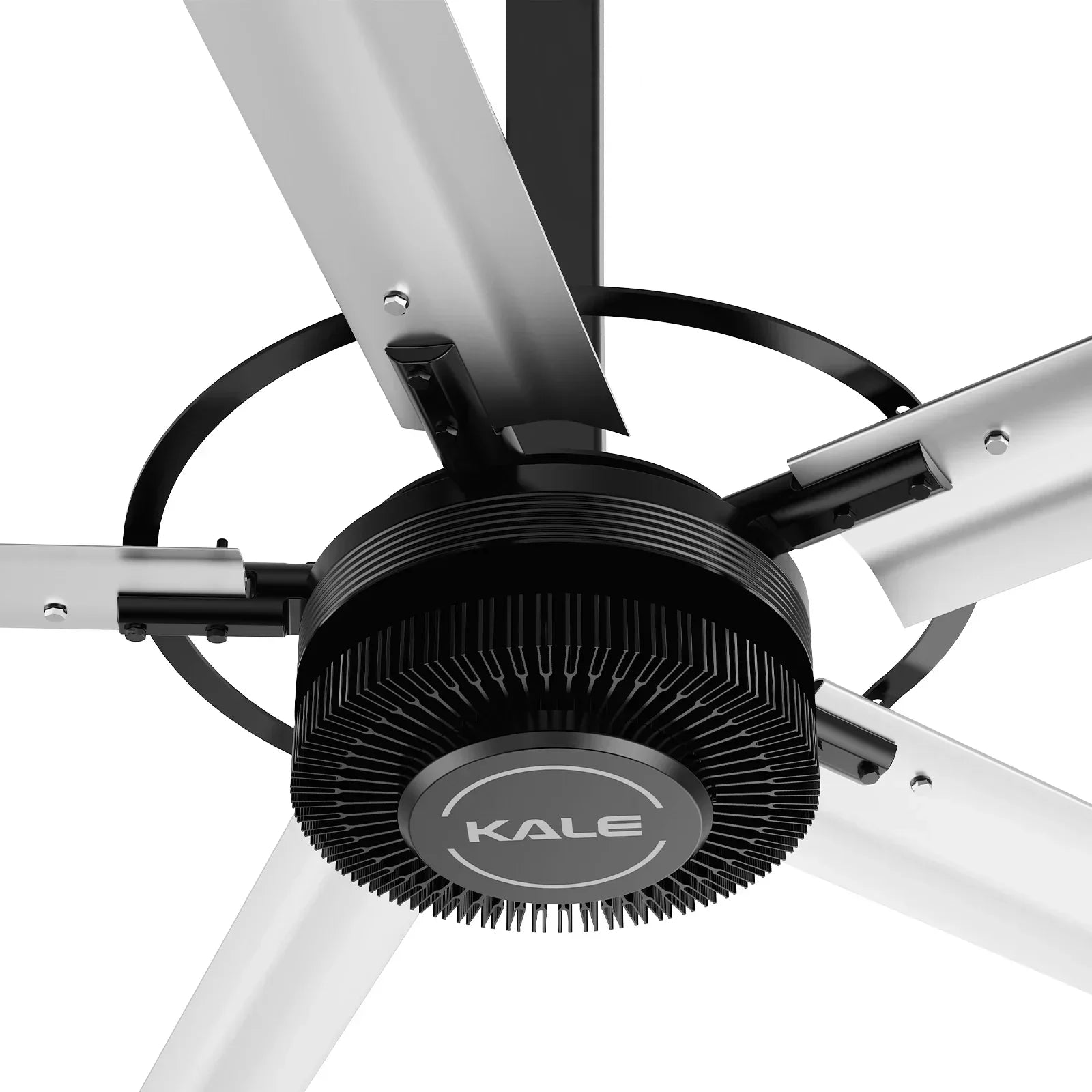

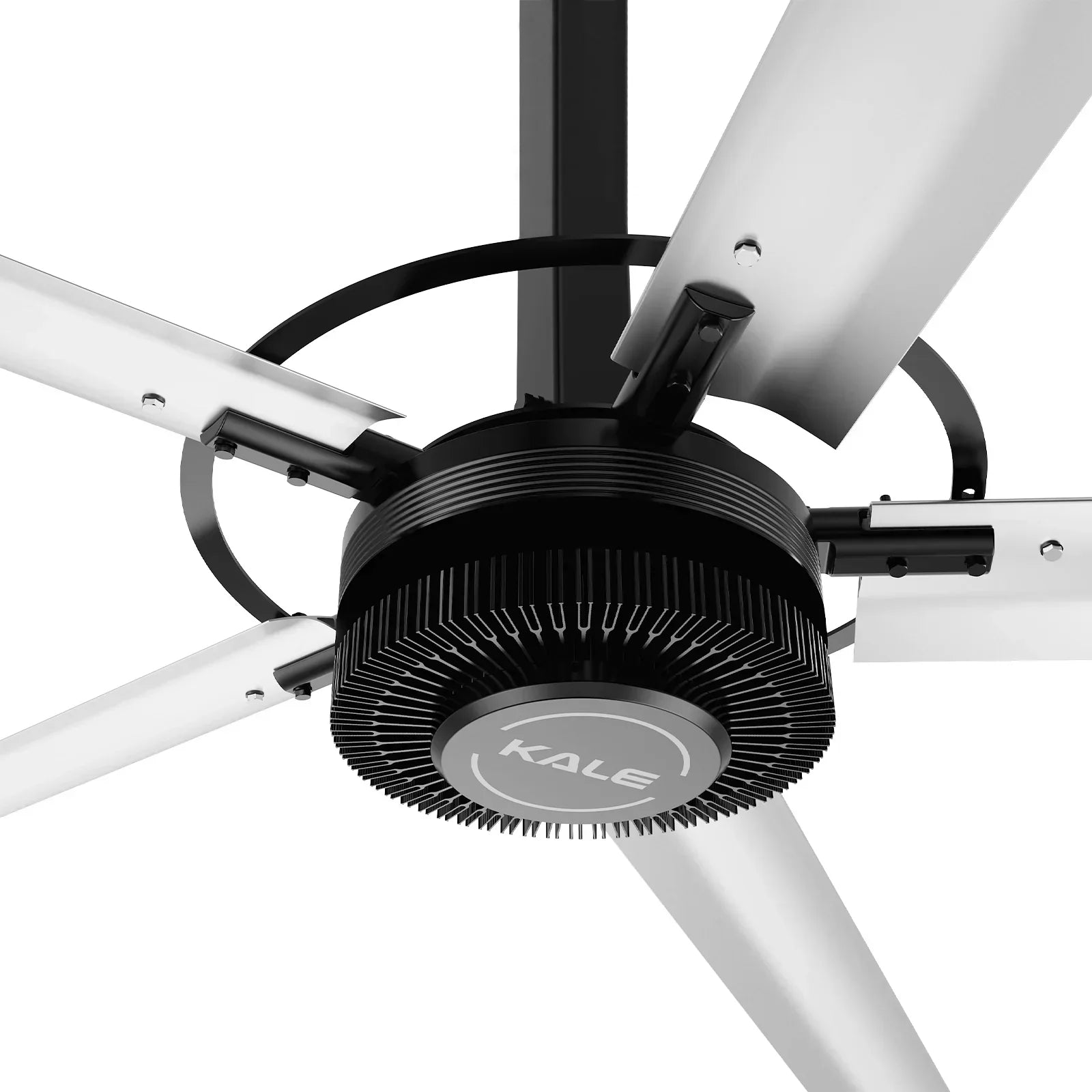

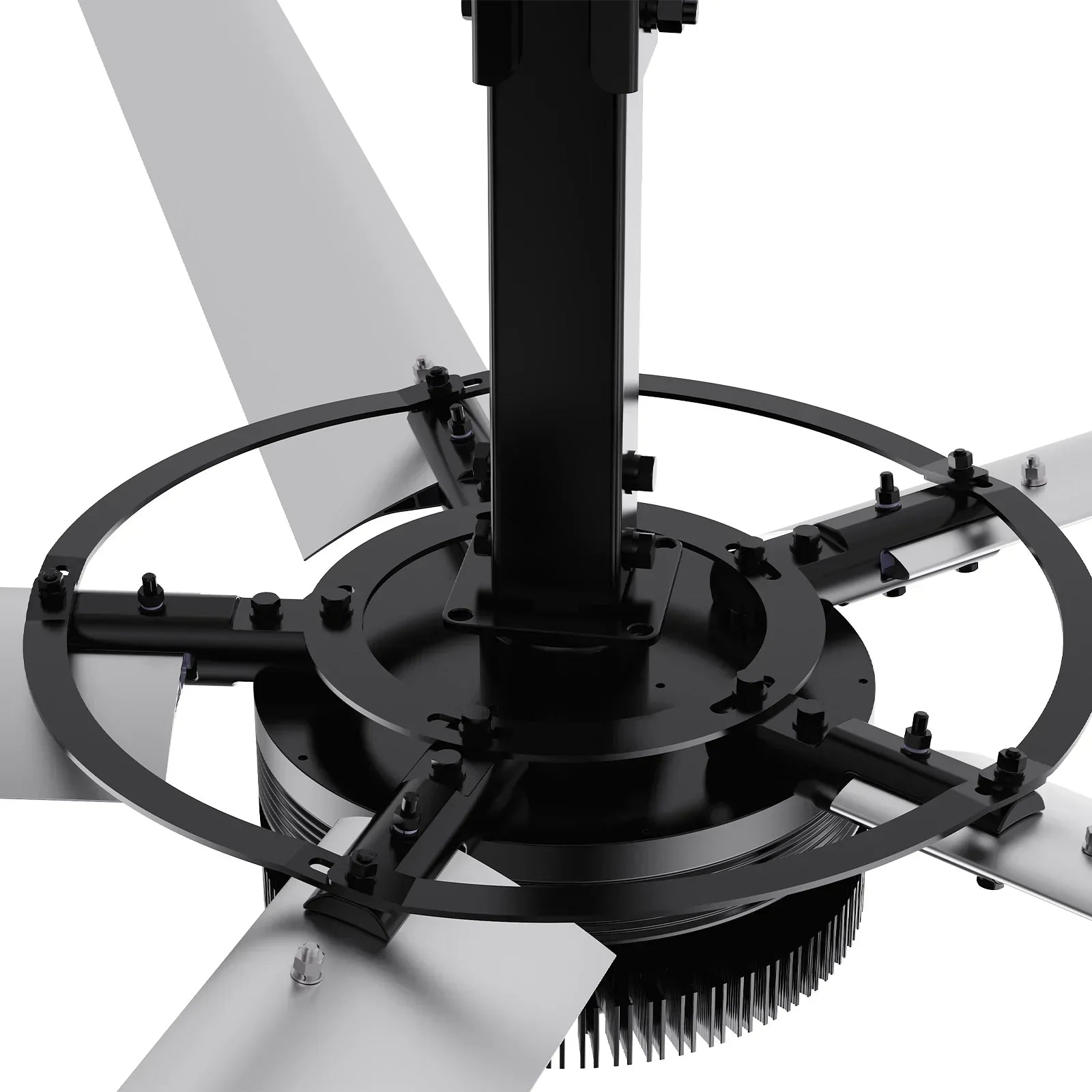

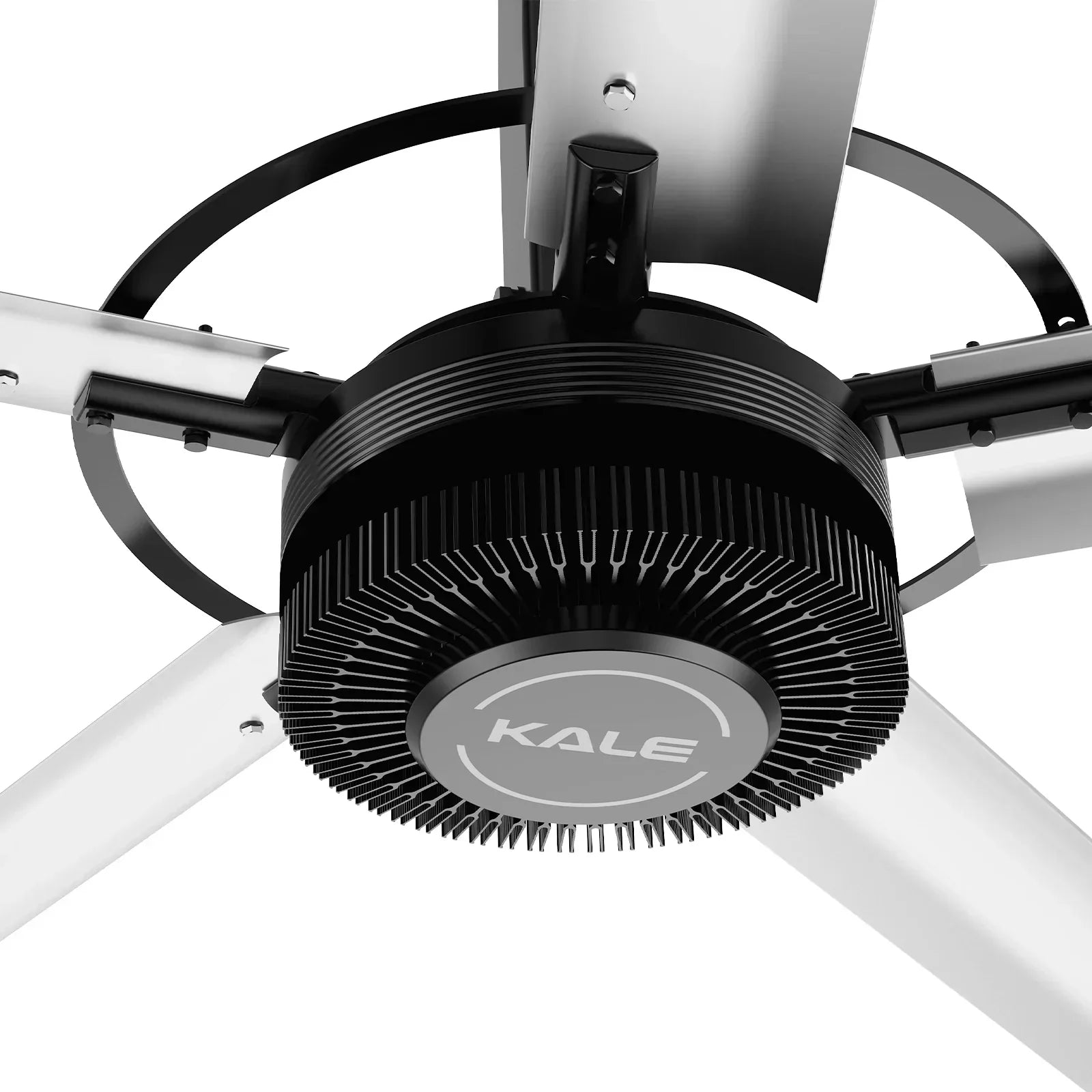

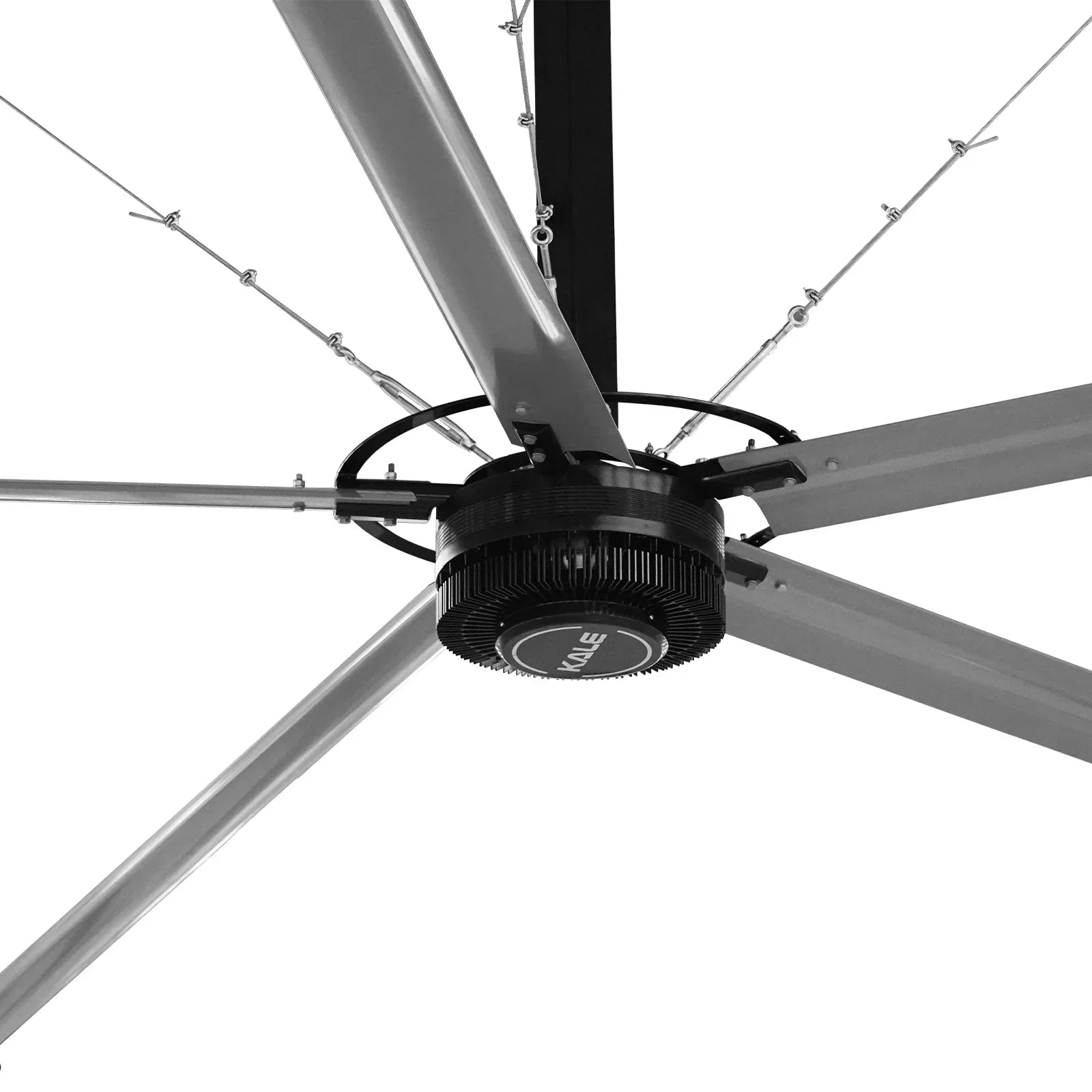

Drive Motor Permanent Magnet Synchronous Motor
Speed Variable Speed
Drive Type Direct
Blade Material Al-Mg
Fan Weight 273LBS
Noise Level <40dB
Protection Level(Motor) IP55

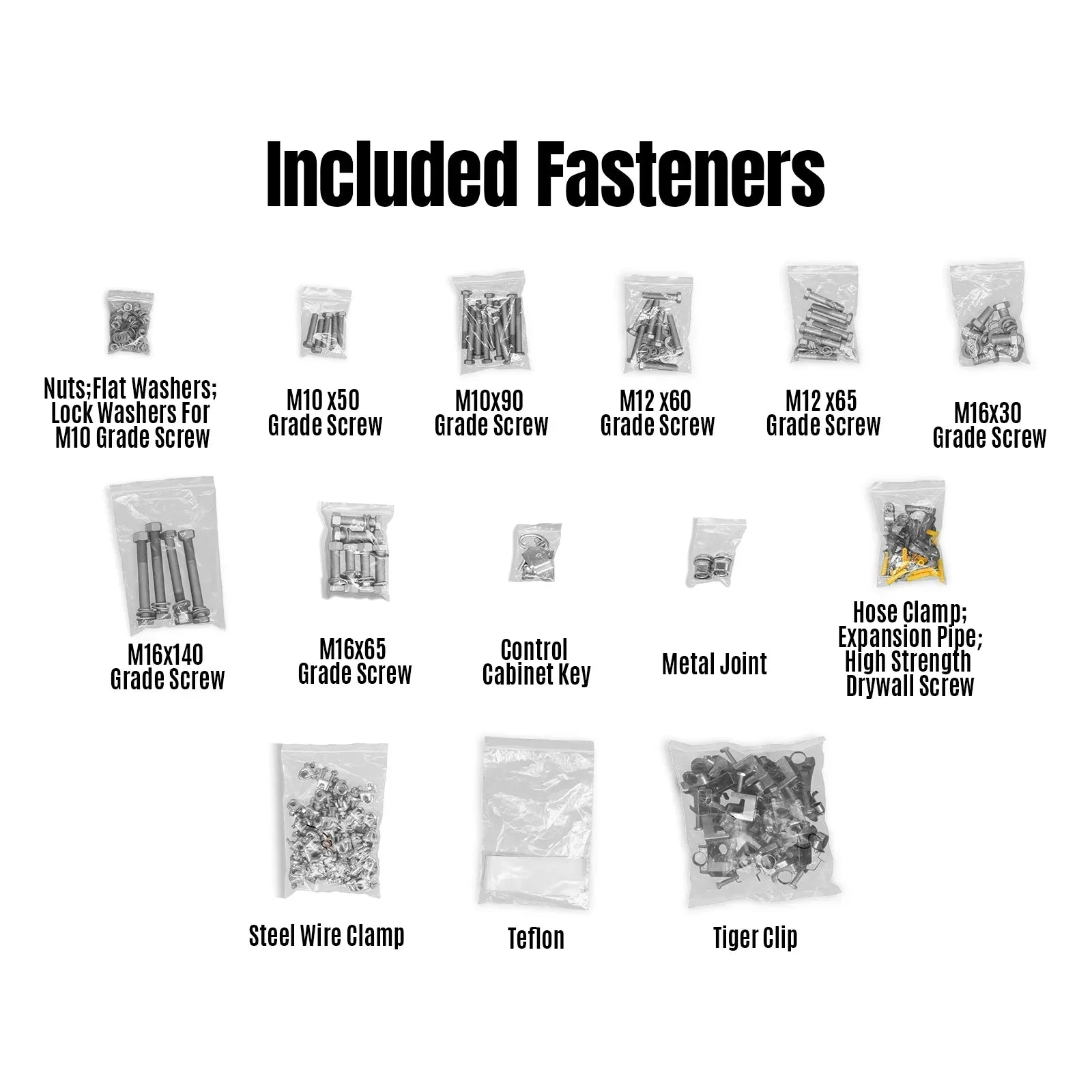

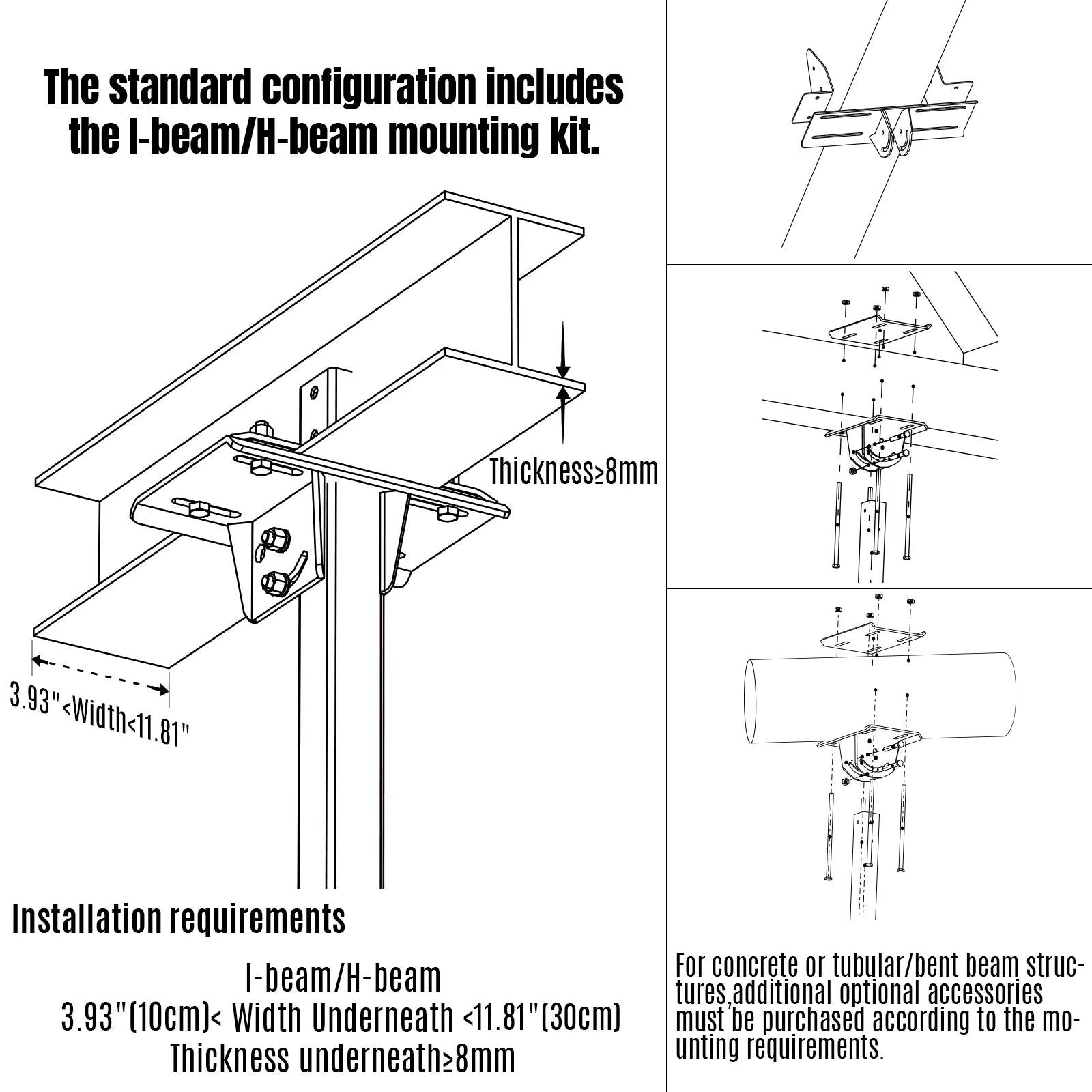

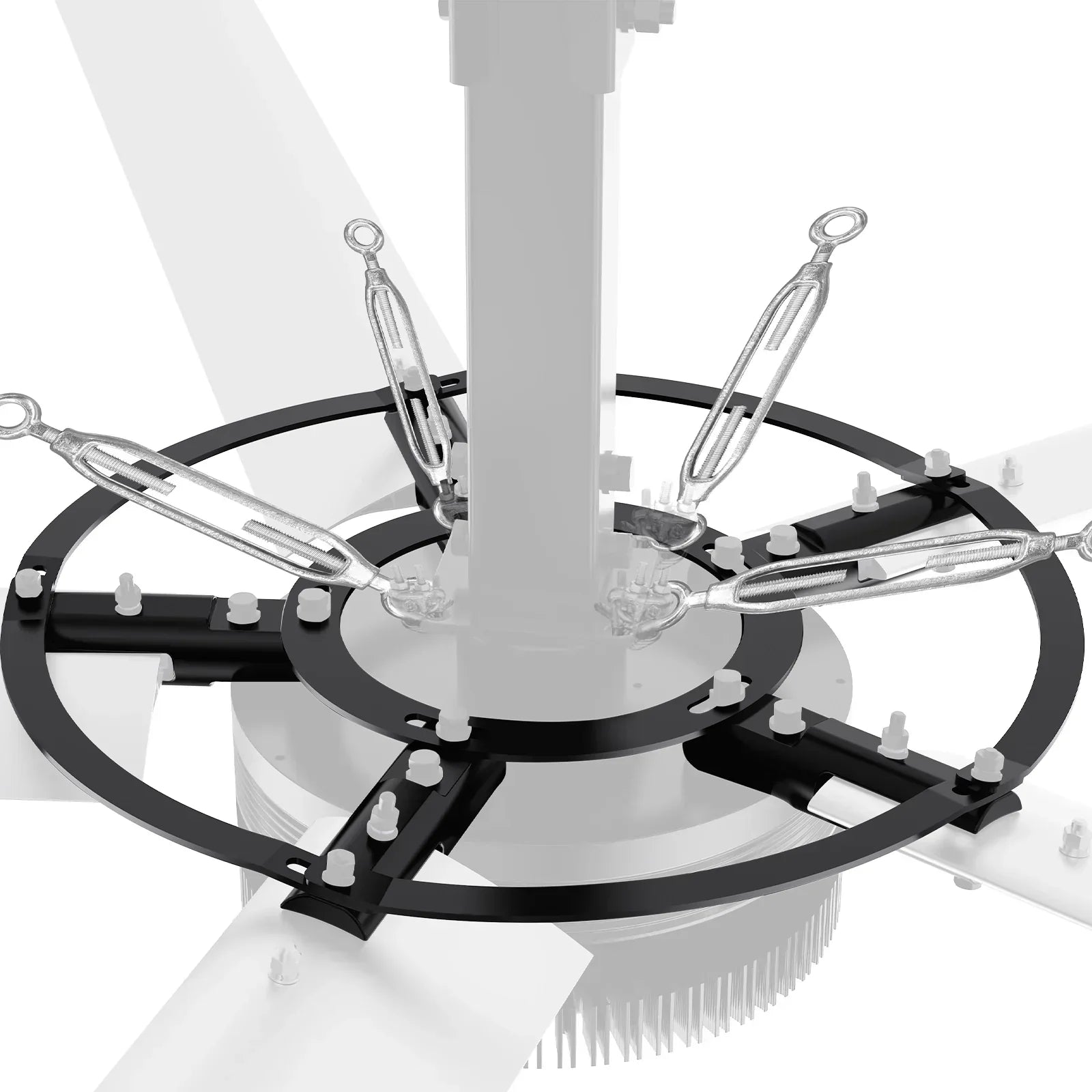

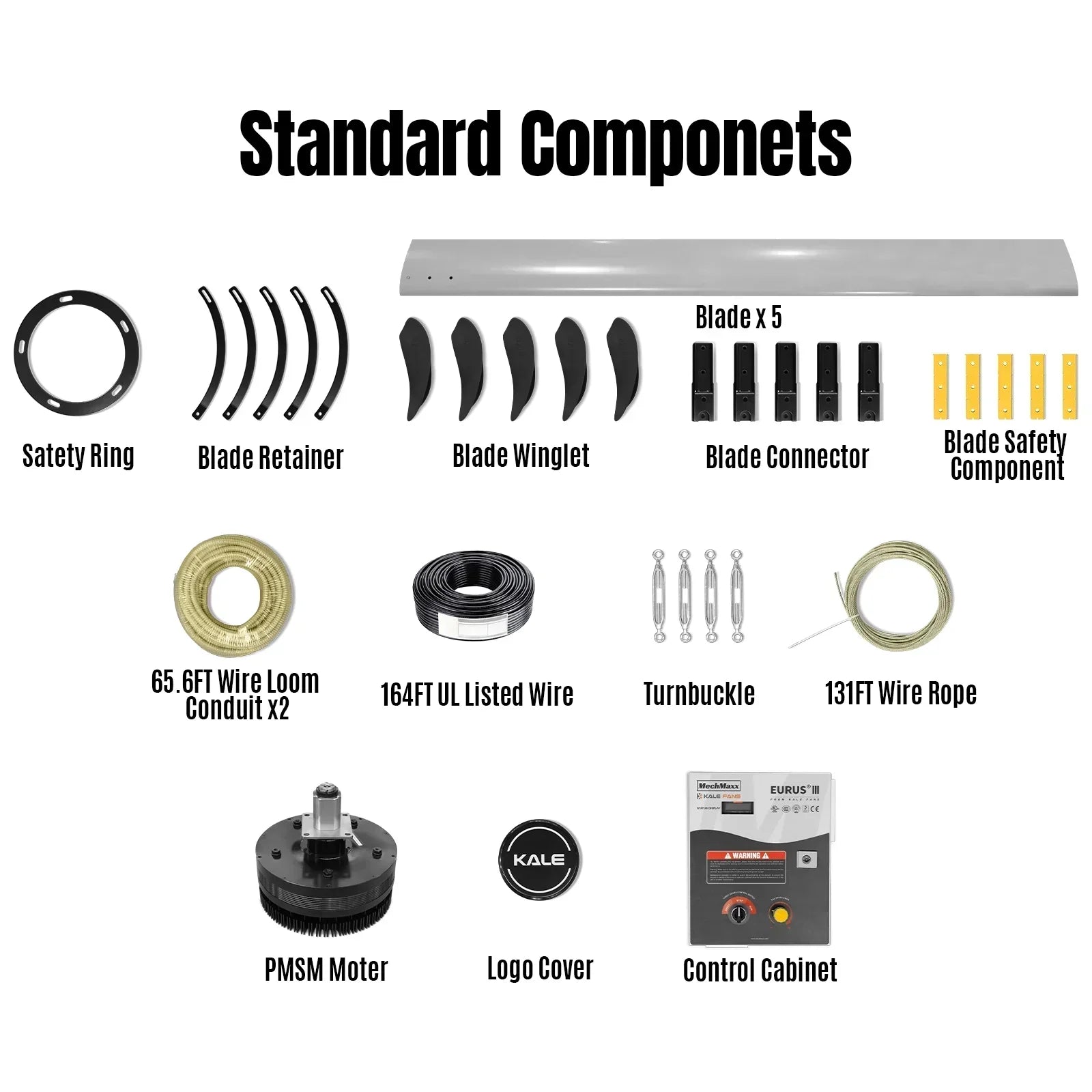

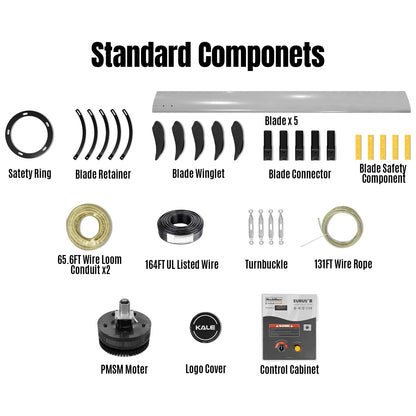

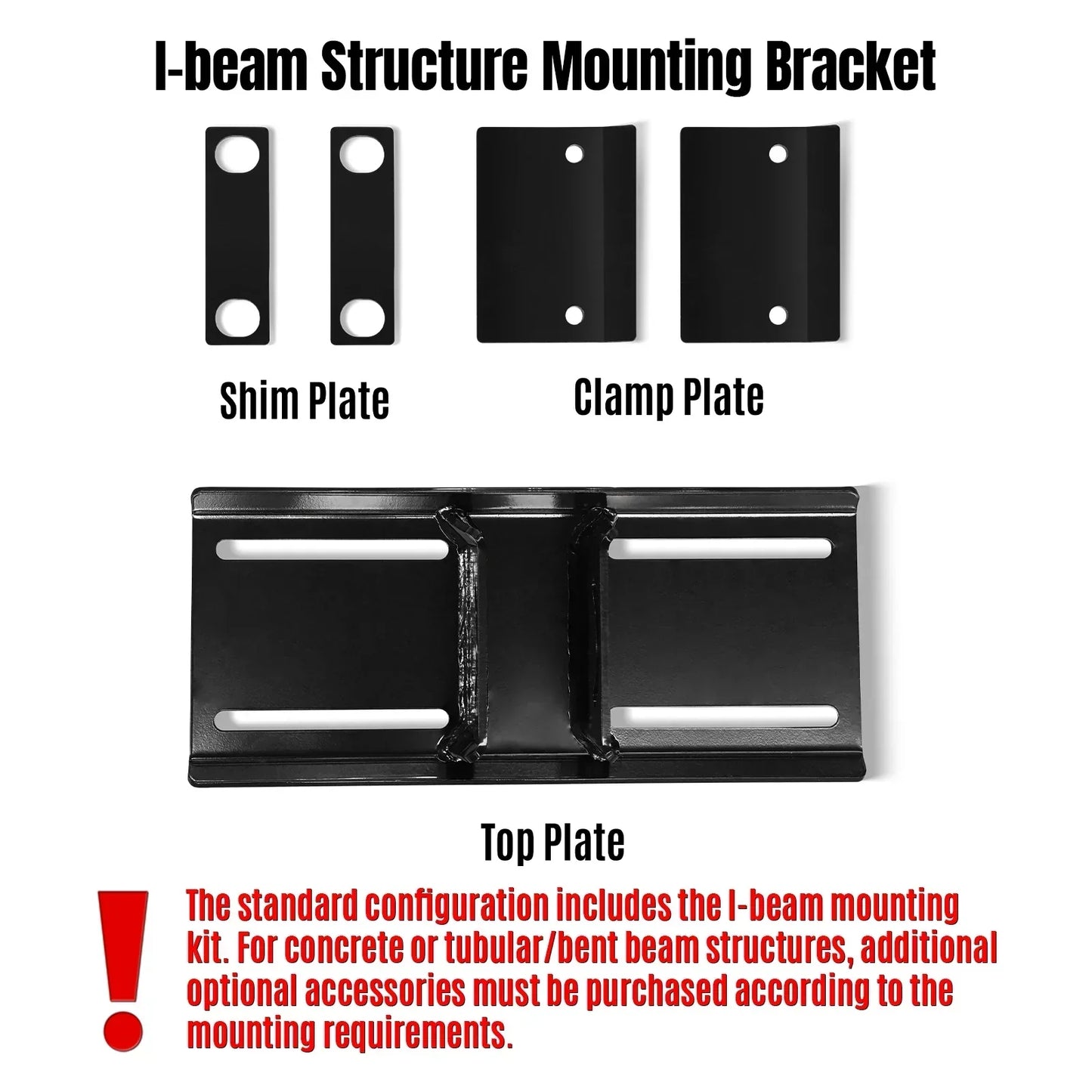

Standard Includes I-Beam Structure Mounting Kits;

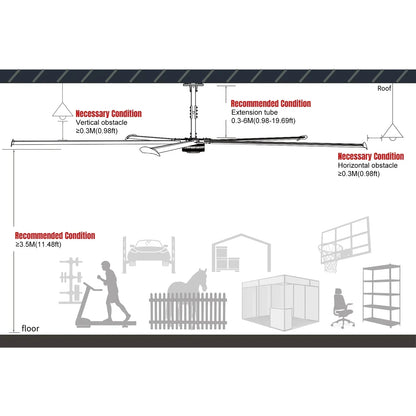

59" Extension Tube;

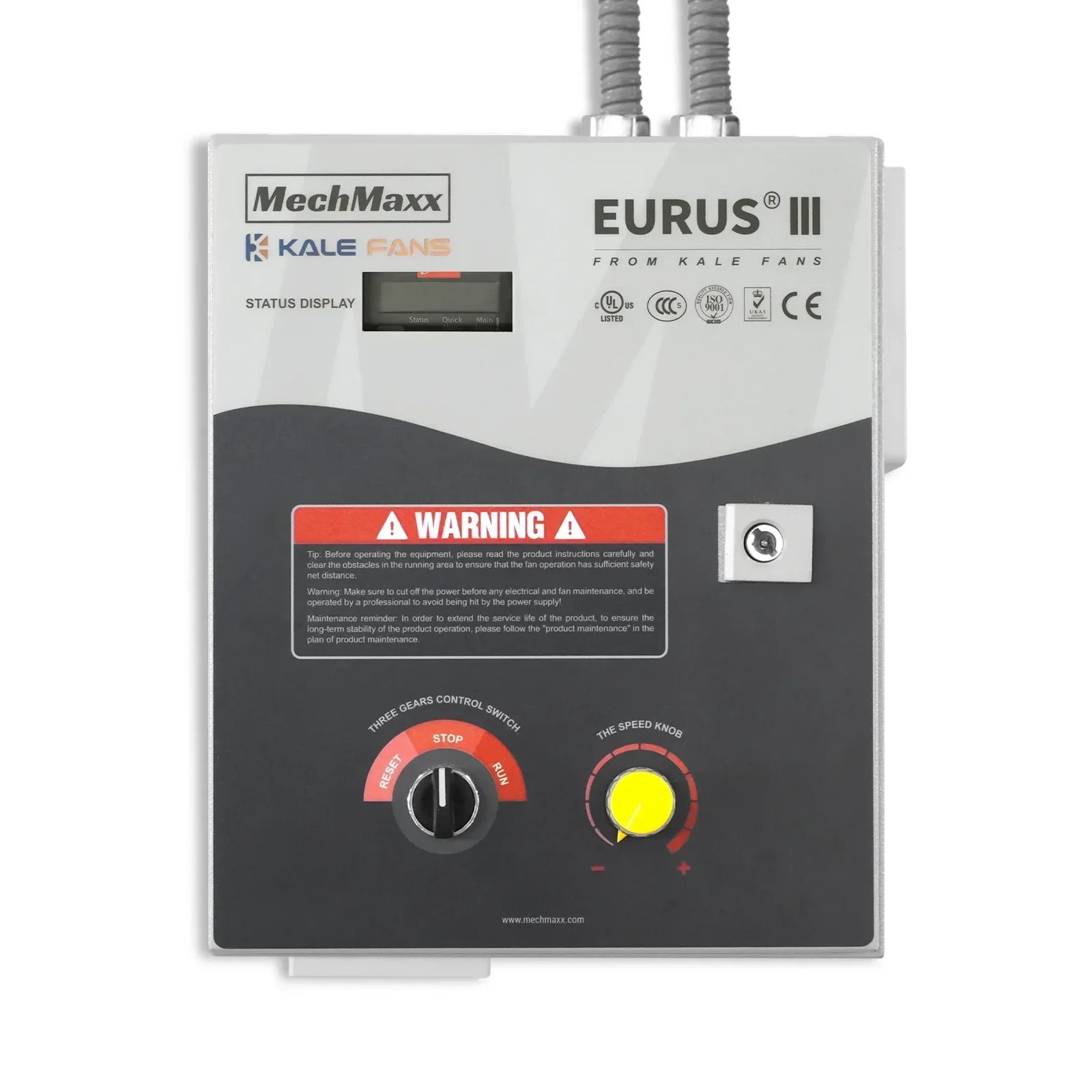

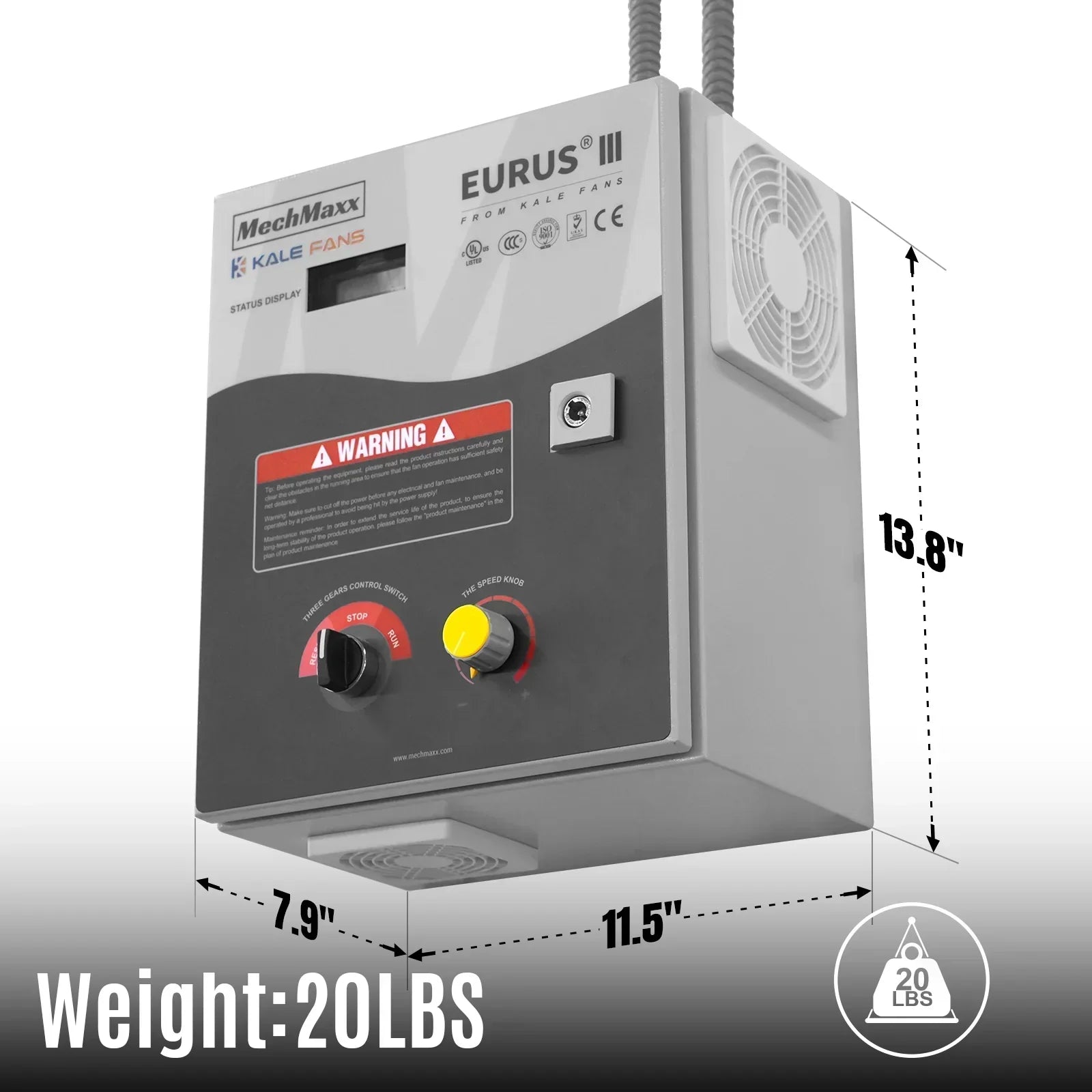

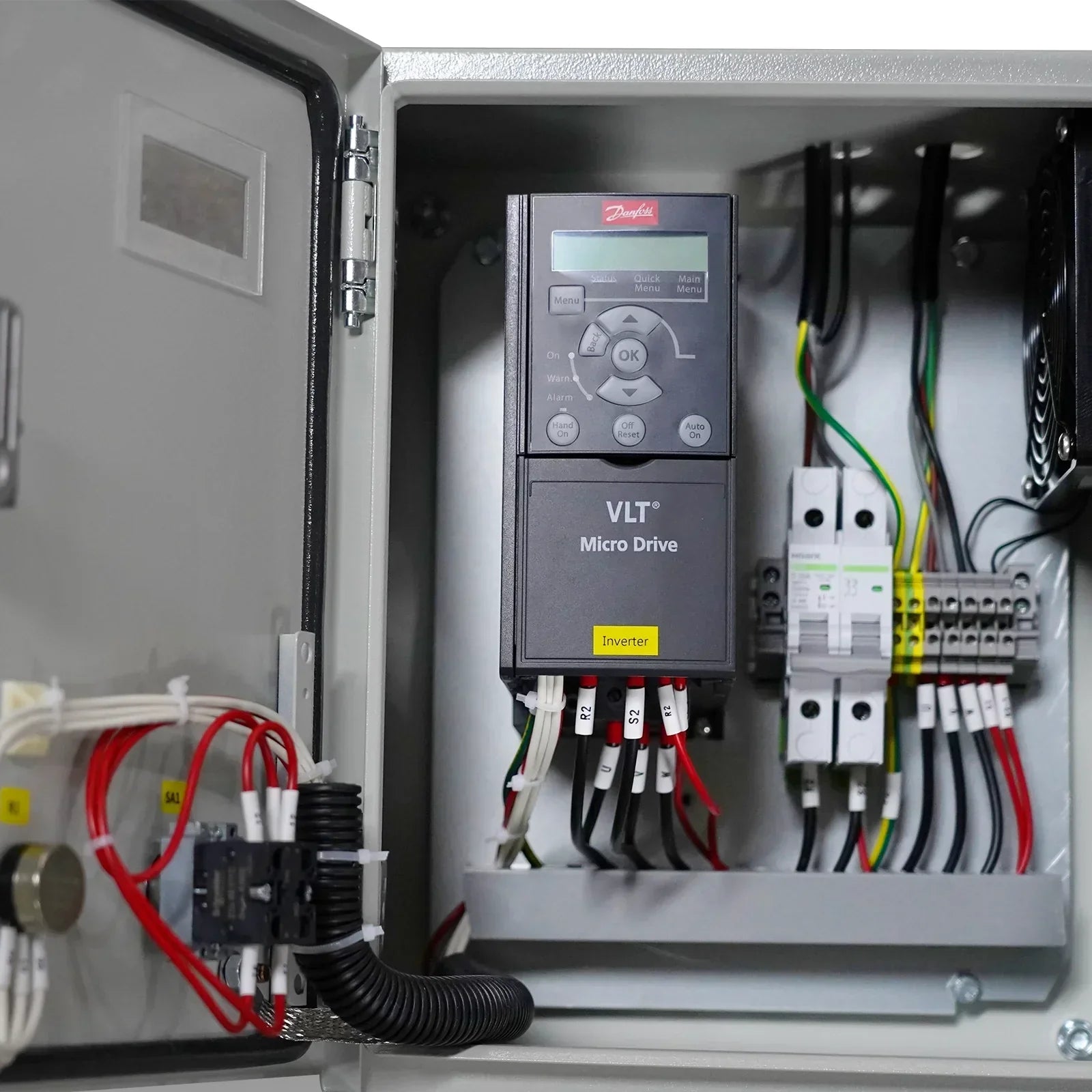

Control Cabinet;
131Wire Conduit;
131'Wire Rope;
164' UL Listed Wire.

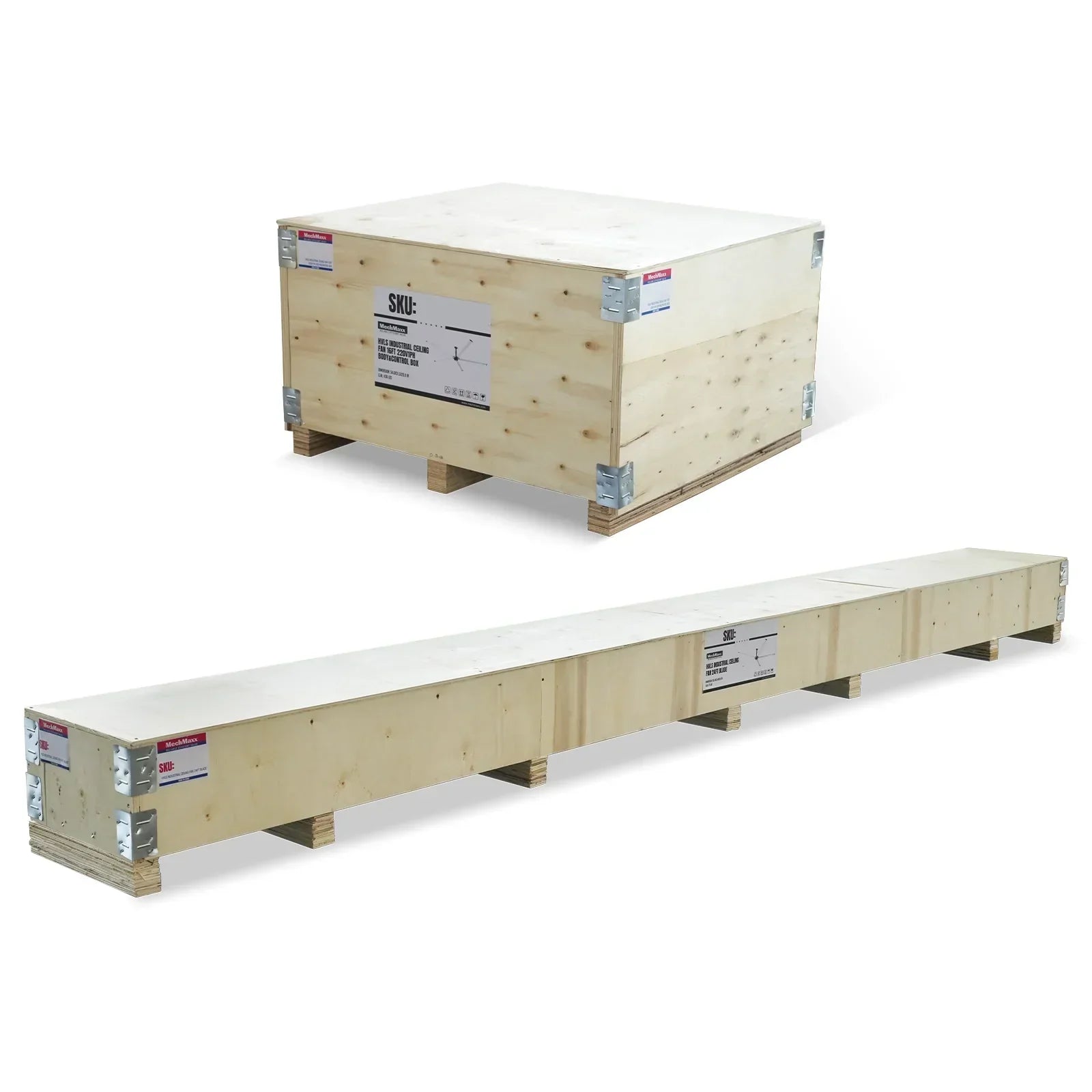

Packing Size Box A:34.6"x31.5"x20.9"
Box B:135.4"x13.4"x10.6"
Gross Weight Box A: 356 LB
SBox B: 178 LBS

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
